TIG Welder, Aspect 375 AC/DC Series, 200 V to 600 V

SKU
Brand Lincoln Electric
Categories
Description TIG Welder, Input Frequency 50/60 Hz, Max. Input Current 46 A @ 208V AC (Three-Phase), 47 A @ 208V AC (Single-Phase), Phase Single-/Three-Phase, Polarity AC/DC, Series Aspect 375 AC/DC, Stick Welding Maximum Output Current 375 A, Stick Welding Minimum Output Current 2 A (Single-Phase), 2 A (Three-Phase)
graingerSKU: , mscSKU: , zoro_no: G602590555, mongo_id: 65bbe84c22d7a989a98ea90e

Web Price

$25,186.24 / each

Qty

Product Details

Amperage Range 2 to 375 A

Application Automotive, Brewery, General Fabrication, Maintenance and Repair, Marine Applications, Marine Fabrication and Repair, Pharmaceutical Equipment, Repair Welding, Shipbuilding

brand-mfr model LINCOLN ELECTRIC - K3946-2

Color Red

Country of Origin (subject to change) United States

Features AC Auto-Balance Makes it Simple by Automatically Providing the Optimal Mix of Cleaning and Penetration on Aluminum, Customization When You Need It. - Manage AC Frequency, Balance and Offset to Modify Arc Profile, Cleaning Action or Penetration, Effortless Arc Control for the Smoothest Welds, Intellistart(TM) Technology Provides Soft Starts on Thin Materials and Hotter Starts Required on Thicker Materials

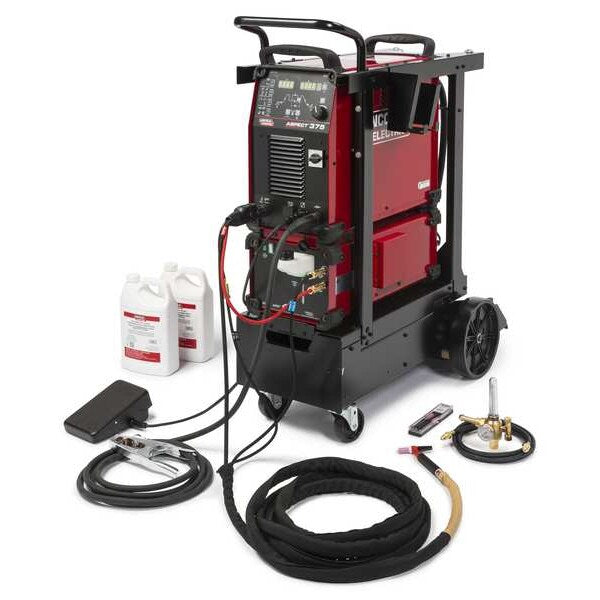

Includes 15 ft (4.5m) Work Lead Assembly (K1803-3), 20H-320-25R 320 Amp Water Cooled TIG Torch (K4168-2), Cool Arc(R) 47 Water Cooling System (K3950-1), Foot Amptrol with 25 ft (7.6m) Cable Assembly (K870), Gas Regulator With Hose (3100211), Low Conductivity Coolant (KP4159-1), TIG Torch Parts Kit (KP510), TIG Welding Cart (K3949-1), Twist Mate(R) Torch Cable Adaptor (K1622-5)

Input Frequency 50/60 Hz

Input Voltage 200 V to 600 V

Input Voltage (Nominal) 208V

Kit Includes Coolant, Flow Gauge/Regulator & Gas Hose, Foot Control, Running Gear, TIG Torch, Water Cooler, Work Cable with Clamp

Max. Amperage Range (TIG) Greater than 300 A

Max. Input Current 46 A @ 208V AC (Three-Phase), 47 A @ 208V AC (Single-Phase)

Model K3946-2

Overall Depth 45 in

Overall Height 47 in

Overall Width 23 in

Package Quantity 1

Phase Single-/Three-Phase

Plug Type Bare Leads

Polarity AC/DC

Power Cord Included Yes

Power Cord Length 10 ft

Process Stick Welding (SMAW), TIG Welding (GTAW)

Pulse Frequency 0.1 to 2000 pulses/second

Rated Output at Duty Cycle (TIG) 180 A @ 100%, 240 A @ 30%, 250 A @ 100%, 350 A @ 30%

Remote Connection Type 6-Pin (Lincoln)

Remote Control Foot Control Included

Series Aspect 375 AC/DC

Stick Welding Maximum Output Current 375 A

Stick Welding Minimum Output Current 2 A (Single-Phase), 2 A (Three-Phase)

Stick Welding Output @ Duty Cycle 180 A @ 27.2 V, 100% (Single-Phase), 240 A @ 29.6 V, 30 % (Single-Phase), 250 A @ 30 V, 100% (Three-Phase), 350 A @ 34 V, 30% (Three-Phase)

TIG Arc Start Feature High Frequency Start, Lift Arc Start

TIG Welding Maximum Output Current 375 A

TIG Welding Minimum Output Current 2 A (Single-Phase), 2 A (Three-Phase)

TIG Welding Output @ Duty Cycle 180 A @ 17.2 V, 100% (Single-Phase), 240 A @ 19.6 V, 30 % (Single-Phase), 250 A @ 20 V, 100% (Three-Phase), 350 A @ 24 V, 30% (Three-Phase)

Weight 290 lb

Welder Kit Type TIG Package w/Foot Control & Water Cooler

Welding Mode CC

Welding Processes Stick Welding (SMAW), TIG Welding (GTAW)
