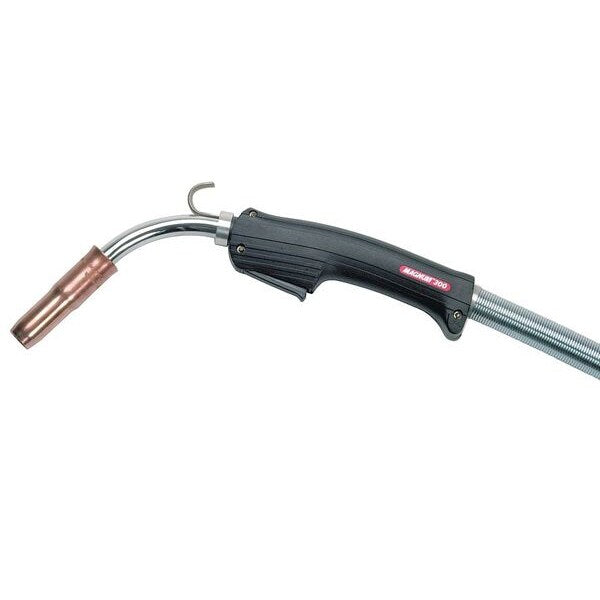

Welding Gun, 300A, 035-, 045 In, Flux-Core

SKU
Brand Lincoln Electric
Categories
Description MIG Gun, MIG Gun Type Air-Cooled, Cooling Method Air-Cooled, Series Magnum 300, Maximum Current 300 A, Duty Cycle 60 Percent, Maximum Wire Diameter 0.078 in, Cable Length 10 ft, For Rear Connection Type Lincoln-Compatible, Handle Type Curved, Trigger Type Standard, Neck Tube Type Fixed, Neck Tube Angle 60 Degrees , Model Magnum 300, Tip Series Magnum 300, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Application MIG Welding
graingerSKU: , mscSKU: 00652255, zoro_no: G6612541, mongo_id: 65bbe8c922d7a989a991546e

Web Price

$896.24 / each

Product Details

Amps 300 A

Amps AC 300 A

Application MIG Welding

Cable Length 10 ft

Cable Length (Ft.) 10 ft

Compatible with Brand Lincoln

Compatible with Model Magnum 300 Welding Gun

Cooling Method Air-Cooled

Country of Origin (subject to change) Mexico

Duty Cycle 60 %

Duty Cycle (%) 0.6

Features Abrasion Resistant, Extruded Rubber Jacket, Rotating Gun Tube and Gun Hanger Clip

For Rear Connection Type Lincoln-Compatible

Gas Diffuser Number KP2024-2, KP54A, KP54A-B25

Handle Type Curved

Includes Cable Liner, Contact Tip, Gas Diffuser, Gas Nozzle, Gun Tube (60 Degrees ), Insulator

Liner Series KP42-25-15, KP44-116-15, KP44-116-25, KP44-3545-15, KP44-3545-25, KP44-564-15, KP44-564-25, KP44N-116-15

Max. Amperage Range 150 A - 300 A

Max. Wire Diameter 5/64 in

Maximum Amperage Range 150 A - 300 A

Maximum Current 300 A

Maximum Wire Diameter 5/64 in

MIG Gun Number Magnum 300

MIG Gun Type Air-Cooled

Model Magnum 300

Neck Tube Angle 60 Degrees

Neck Tube Material Metal

Neck Tube Size Short

Neck Tube Type Fixed

Nozzle Series KP23-37, KP23-37-B25, KP23-50, KP23-50-B25, KP23-50F, KP23-50F-B25, KP23-62, KP23-62-B25, KP23-62F, KP23-62F-B25, KP23-75, KP23H-62, KP23H-62-B25, KP23T-37, KP23T-37-B25, KP24A-37-SS, KP24A-50, KP24A-50-B25, KP24A-50-SS, KP24A-62, KP24A-62-B25, KP24A-62-SS, KP24A-62-SS-B25, KP24CT-62-R, KP24CT-62-R-B25, KP24CT-62-S, KP24CT-62-S-B25, KP24CT-75-R, KP24CT-75-S

Package Quantity 1

Process Flux-Cored Welding (FCAW), MIG Welding (GMAW)

Rotation Deg. 0 Degrees

Series Magnum 300

Tip Series Magnum 300

Trigger Standard

Trigger Type Standard

Weight 11 lb

Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW)

Wire Feed Type Push

Wire Size 0.035 in to 0.045 in
