Home / 3B30A2S Numatic Foot Switch

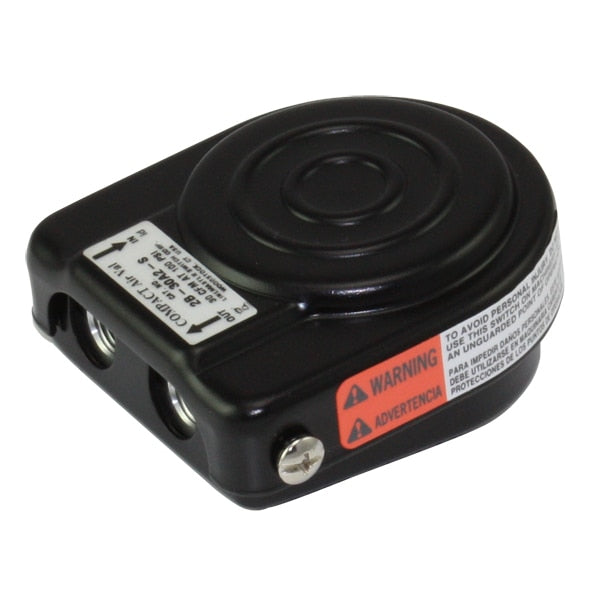

3B30A2S Numatic Foot Switch

SKU
Brand Linemaster
Categories
Description Medium Duty Foot Switch, DPDT Contact Form, Voltage Rating 125 to 250V AC, NEMA Rating 1, Current Rating 15/10, Material Cast Iron, Color Black, Momentary Action, Cord Type No Cord, Length 4 9/16 in, Width 3 29/64 in, Depth 1 25/32 in, HP 1/2, IP Rating 20, Features Nonskid Base, Standards CE, UL, Manufacturers Warranty Length 1 yr
graingerSKU: 35V830, mscSKU: 54097027, zoro_no: G3152409, mongo_id: 65bbea0522d7a989a998dcc3

Web Price

$117.74 / each

Qty

Minimum order: 10

Product Details

Action Momentary

Actions Momentary

Color Black

Contact Form DPDT

Cord Type No Cord

Country of Origin (subject to change) United States

Current Rating 15/10

Depth 1 25/32 in

Features Nonskid Base

FEATURES & BENEFITS Nonskid Base Pad Designed for long life operation Two-Way models do not exhaust back pressure Plunger can be depressed flush with valve body without damage to valve Standard 1/8-27 N.P.T. input and output ports Filtered and lubricated air supply is required for best operation Line pressure up to 150 P.S.I.

Housing Colors Black

Housing Materials Formed Steel

HP_ 1/2

Input & Output Ports 1/8-27 NPT Ports - Exposed

IP Rating 20

Length 4 9/16 in

Length (Straight Wireway) 4 9/16 in

Manufacturers Warranty Length 1 yr

Material Cast Iron

MATERIALS Internal Valve is constructed of a Non-Ferrous body, Stainless steel plunger and Teflon coated buna-N O-rings Air flows when plunger is depressed, stops flowing when plunger is released and exhausts back pressure on output side Air exhausts around plunger Strong Steel Housing

NEMA Rating 1

Package Quantity 1

Pneumatic Valves 3-way air valve, 1/8-27 NPT ports - exposed

PURPOSE Versatile Compact Design

Standards CE, UL

Switch Type Air Switch

Voltage Rating 125 to 250V AC

Width 3 29/64 in
