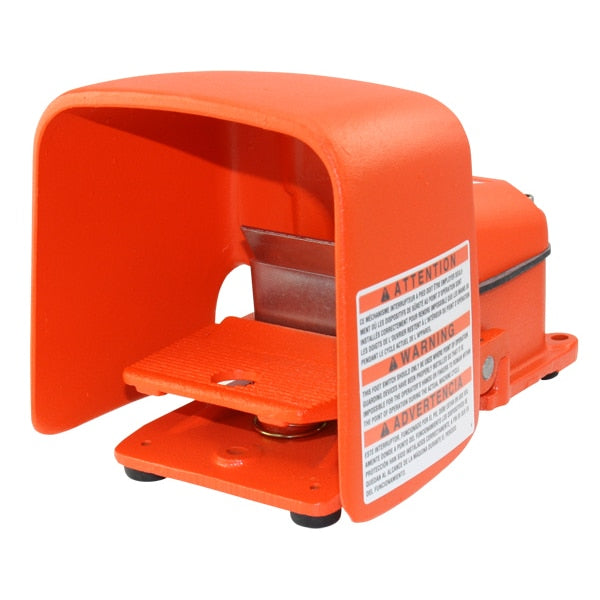

Anti Trip - Hercules Gated OX Shield

SKU
Brand Linemaster
Categories
Description Anti-Trip Hercules Ox-Shield Dpdt-Db

Web Price

$498.74 / each

Qty

Product Details

Actions Single Stage Momentary

Cable Entries 3/4-14 NPT threaded entry

Circuitries DPDT-DB (Form ZZ)

Country of Origin (subject to change) United States

Electrical Ratings 15 A 125-250 VAC, 1/2 H.P. 125 VAC, 1 H.P. 250 VAC, Heavy Pilot Duty 250 VAC Max.

ENCLOSURE NEMA Type 2, 4 & 13 Ã¢ÂÂ¢ UL ENCLOSURE 2, 4 & 13 Ã¢ÂÂ¢ CSA ENCLOSURE 2, 4 & 13 Ã¢ÂÂ¢ EN 60529 Degree Of Protection Ã¢ÂÂ¢ IP56

FEATURES & BENEFITS Benders Box Marker Brakes Chopper Cleaner Closing System Conveyor Systems Crimping Machine Cut Off Machines for Pipe and Tubing Cutter Cutting Machine Drilling Machine Drilling Table Fabricator Filler Removal Machine Folding Machine Food Processing Equipment Forming System Grinder Grinding Machine Lacers Lathes Lift Marking System Material Handlers Microscopes Missile Launching Control Systems Molding Machines Nibbler Notcher Oil Drilling Rigs Platforms Positioners Potters Wheels Puller Punching Equipment Rewind System Riveter Roll Groover Router Saw Saw Mill Scrap Chopper Sewer Cleaning Equipment Shears Shoe Machine Shredder Space Shuttle Spinners Stapler Surgical Equipment Tables Tester Thread Rolling Machine Threading Machine Trimming Beading and Forming Machines Beading & Forming Machines Tube-end Forming Machines Tube Expansion Device Turn/Mill Centers Turner Turning Centers Turntable Tying & Bundling Machines Voltage Control Water Cannon Welders Winding Equipment Wire Drawing System

Housing Colors Orange

Housing Materials Cast Iron

MATERIALS Heavy duty foot switch features an anti-trip treadle mechanism that helps prevent accidental actuation through unintentional stepping on foot treadle Switch operation requires that the latch trip lever be released prior to depressing the foot treadle as in-line foot pressure is applied to the latch trip lever located at the rear of the foot treadle Smooth trip lever release and treadle depression motion results in good rate of operation Dual treadle return springs and latching mechanism Anti-skid rubber feet and 3 holes for rigid mounting to floor or equipment All Models have a neoprene Cover Gasket plus O-Rings on the Actuating shaft and separate ground screw

Package Quantity 1

PURPOSE Advanced Design helps prevent accidental actuation

Shields & Guards Gated OX Shield

Switch Type Electrical
