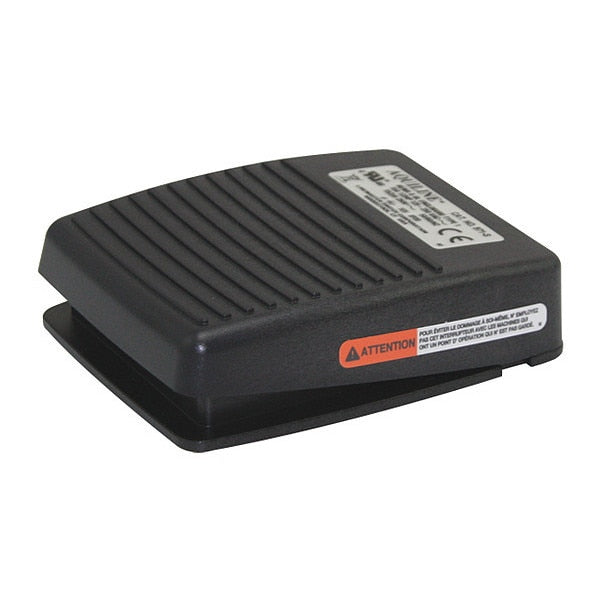

Aquiline Maintained - Metal

SKU
Brand Linemaster
Categories
Description Light Duty Foot Switch, SPST-NO Contact Form, Voltage Rating 125/250V AC, NEMA Rating 1, Current Rating 12, Material Plastic, Color Gray, Maintained Action, Cord Type No Cord, Length 4 in, Width 3 7/16 in, Depth 1 3/32 in, HP 1, 1/2, IP Rating 20, Features Nonskid Base, Standards CE, UL, Manufacturers Warranty Length 1 yr
graingerSKU: , mscSKU: , zoro_no: G6032599, mongo_id: 65bbe98f22d7a989a9962b37

Web Price

$57.86 / each

Qty

Product Details

Action Maintained

Actions Single Stage Maintained

Cable Entries Adjustable strain relief clamp

Circuitries SPST-NO (Form A)

Color Gray

Contact Form SPST-NO

Cord Type No Cord

Country of Origin (subject to change) United States

Current Rating 12

Depth 1 3/32 in

Electrical Ratings 12A 1HP 250 VAC, 1/2HP 125 VAC

ENCLOSURE NEMA Type 1 Ã¢ÂÂ¢ UL ENCLOSURE Type 1 Ã¢ÂÂ¢ EN 60529 Degree Of Protection Ã¢ÂÂ¢ IP20

Features Nonskid Base

FEATURES & BENEFITS Maximum versatility, total performance Non-skid base pad 2 holes provided for rigid mounting to Floor or equipment Twin model has Electrical Interlock feature

Housing Colors Black

Housing Materials Cast Zinc

HP_ 1, 1/2

IP Rating 20

Length 4 in

Length (Straight Wireway) 4 in

Manufacturers Warranty Length 1 yr

Material Plastic

MATERIALS SPDT, DPDT, Two-Stage, Momentary or Maintained Operation Rustproof and corrosion proof cast zinc cover and formed steel base Raised ribs on treadle for positive traction during operation Integrated adjustable strain relief clamp accommodates cord sizes from .250 Dia. to .400 Dia.

NEMA Rating 1

Package Quantity 1

PURPOSE Versatile Compact Design

Standards CE, UL

Switch Connections Solder terminal, Quick-connect terminal

Switch Type Electrical

Voltage Rating 125/250V AC

Width 3 7/16 in
