Home / Gnrl Prps Foot Swtch, Momentary Action

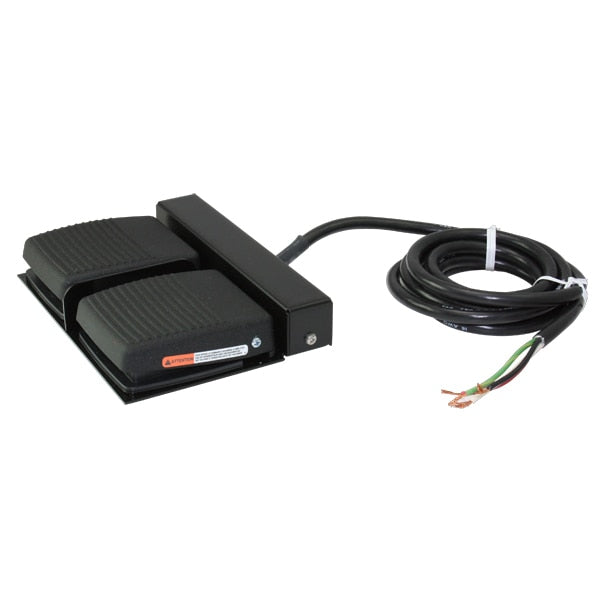

Gnrl Prps Foot Swtch, Momentary Action

SKU
Brand Linemaster
Categories
Description General Purpose Foot Switch, (2) SPDT-NO Contact Form, Voltage Rating 125/250V AC, NEMA Rating 1, Current Rating 13, Material Die Cast Zinc, Color Black, Momentary Action, Cord Type 16/4, Length 5 1/2 in, Width 7 15/16 in, Depth 1 3/8 in, HP 1/2, Cord Length 8 ft, Features Two Pedal Operation
graingerSKU: 1AGP4, mscSKU: , zoro_no: G4329184, mongo_id: 65bbea2f22d7a989a999c256

Web Price

$247.49 / each

Product Details

Action Momentary

Actions Single Stage Momentary

Cable Entries Adjustable strain relief clamp

Circuitries SPDT wired NO

Color Black

Contact Form (2) SPDT-NO

Cord Length 8 ft

Cord Type 16/4

Cordsets 8-ft cordset, no plug

Country of Origin (subject to change) United States

Current Rating 13

Depth 1 3/8 in

Electrical Ratings 1/2 HP 125-250 VAC, 13A, 125-250 VAC

ENCLOSURE NEMA Type 1 Ã¢ÂÂ¢ UL ENCLOSURE Type 1 Ã¢ÂÂ¢ EN 60529 Degree Of Protection Ã¢ÂÂ¢ IP20

Features Two Pedal Operation

FEATURES & BENEFITS Maximum versatility, total performance Non-skid base pad 2 holes provided for rigid mounting to Floor or equipment Twin model has Electrical Interlock feature

Footnotes 9

Housing Colors Black

Housing Materials Cast Zinc

HP_ 1/2

Length 5 1/2 in

Length (Straight Wireway) 5 1/2 in

Material Die Cast Zinc

MATERIALS SPDT, DPDT, Two-Stage, Momentary or Maintained Operation Rustproof and corrosion proof cast zinc cover and formed steel base Raised ribs on treadle for positive traction during operation Integrated adjustable strain relief clamp accommodates cord sizes from .250 Dia. to .400 Dia.

NEMA Rating 1

Package Quantity 1

PURPOSE Versatile Compact Design

Switch Connections Quick-connect terminal, Pre-wired

Switch Type Electrical

Voltage Rating 125/250V AC

Width 7 15/16 in
