Home / Coupler, 2 in. Dia., 3 in. W, 4 in. H

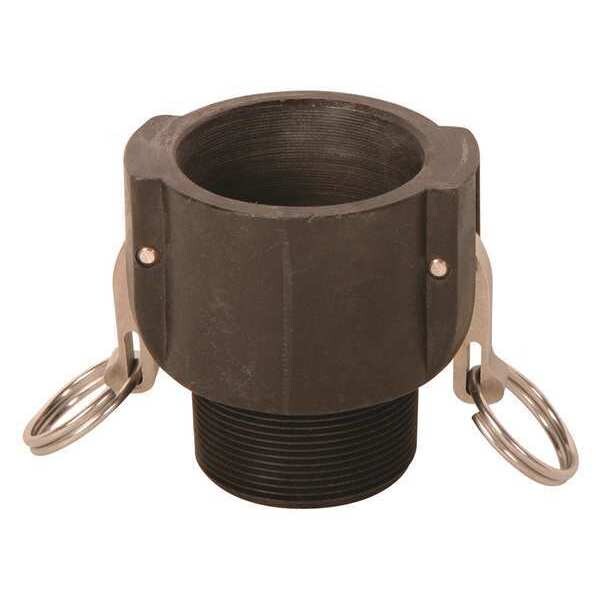

Coupler, 2 in. Dia., 3 in. W, 4 in. H

SKU
Brand Liquidynamics
Categories
Description Coupler, Body Material Polypropylene, Seal Material EPDM, Tote Connection Size 2 in, Hose Inside Dia. 3/4 in, Max. Fluid Temp. 150 Degrees F, Min. Fluid Temp. 17 Degrees F, Max. Operating Pressure 100 psi, Outlet Angle 0 Degrees , Diesel Exhaust Fluid Compatible Yes, Wetted Materials EPDM, Polypropylene, Agency Compliance ISO222241-3, For Use With Mfr. No. 950390-12M, 950390-25M
graingerSKU: 49CD12, mscSKU: , zoro_no: G4022271, mongo_id: 65bbe88b22d7a989a98feb42

Web Price

$45.61 / each

Qty

Product Details

Adapter Dia. 2

Adapter Material Polypropylene

Adapter Type 2 Camlok

Agency Compliance ISO222241-3

Body Material Polypropylene

Compatible Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Citric Acid 50%, Ethyl (Ethanol), Isopropyl (Isopropanol), Antifreeze (Coolant), Ethylene Glycol, Glycerin, Sodium Bicarbonate (10%), Formaldehyde 40%, Formaldehyde, Ammonium Hydroxide, Sodium Hypochlorite/Bleach (to 20%), Potassium Hydroxide (50%), Fresh Water, Salt Water, Deionized Water, Sodium Bisulfite, DEF

Country of Origin (subject to change) Italy

DEF Compatible Yes

Diameter 2

Diesel Exhaust Fluid Compatible Yes

For Media Type Acetic Acid, Citric Acid, Ethanol, Isopropanol, Antifreeze, Ethylene Glycol, Glycerin, Sodium Bicarbonate, Formaldehyde, Ammonium Hydroxide, Bleach, Potassium Hydroxide (50%), Water, Sodium Bisulfite, DEF

For Use With Mfr. No. 950390-12M, 950390-25M

Gear Lube NT

Grease NT

Height 4

Hose Inside Dia. 3/4 in

Manufacturers Warranty Length 30 day

Max. Fluid Temp. 150 Degrees F

Max. Liquid Temp. 86 Degrees F

Max. Operating Pressure 100 psi

Min. Fluid Temp. 17 Degrees F

Not Recommended Chemicals Acetic Acid 80%, Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Acetone, Methyl Ethyl Ketone (MEK), Methyl (Methanol), Calcium Chloride, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Hydrazine, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Lacquer Thinners, Toluene, Xylene, Motor Oil, Methyl Chloride, Sodium Bisulfate, Trichlorethylene (50%), E85, Anhydrous Ammonia, Ammonia (Liquids), Automatic Transmission Fluid, Brake Fluid, Fertilizers, Fungicides, Herbicides, Lithium Grease, Naphtha, Paint, Paint Thinner, Pesticides, Turpentine, Windshield Washer Fluid

Outlet Angle 0 Degrees

Package Quantity 1

Seal Material EPDM

Tote Connection Size 2 in

Wetted Materials EPDM, Polypropylene

Width 3
