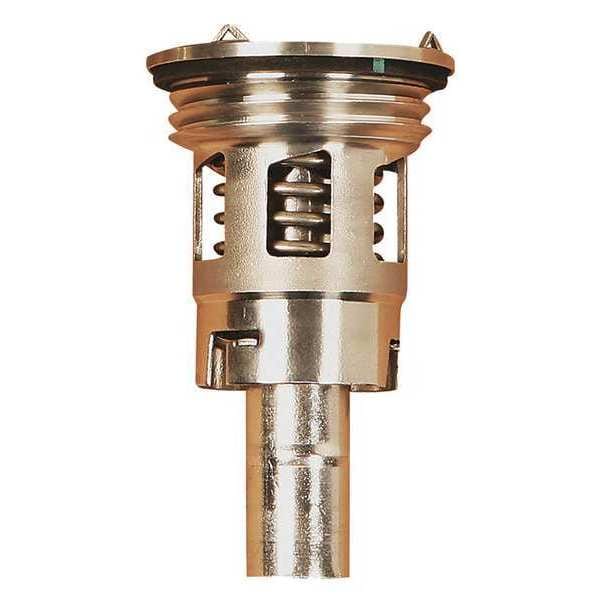

Drum Valve, 4 Pin, SS, 2In. Female Buttress

SKU
Brand Liquidynamics
Categories
Description Drum Valve, Valve Thread Dia. 2 1/2 in, Valve Thread Type Buttress, Body Material Stainless Steel, Seal Material EPDM, Wetted Materials EPDM, Stainless Steel, Max. Fluid Temp. 104 Degrees F, Min. Fluid Temp. 17 Degrees F, Downtube Length 32 in, 40 in, 46 in, Overall Length 5 in, Diesel Exhaust Fluid Compatible Yes, Food Grade No, Features 4 Key, For Use With 105205-46, 195205-32,195205-40, 195205A, 195205D, Agency Compliance ISO 222241-3
graingerSKU: 48GP48, mscSKU: , zoro_no: G3728019, mongo_id: 65bbe6e33aaddbd5a905ce05

Web Price

$123.94 / each

Qty

Product Details

Adapter Type 2 Female Buttress

Agency Compliance ISO 222241-3

Body Material Stainless Steel

Compatible Chemicals Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)

Country of Origin (subject to change) United States

Diesel Exhaust Fluid Compatible Yes

Downtube Length 32 in, 40 in, 46 in

Features 4 Key

Food Grade No

For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water

For Use With 105205-46, 195205-32,195205-40, 195205A, 195205D

Gear Lube NT

Grease NT

Max. Fluid Temp. 104 Degrees F

Min. Fluid Temp. 17 Degrees F

Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene

Overall Length 5 in

Package Quantity 1

Seal Material EPDM

Valve Thread Dia. 2 1/2 in

Valve Thread Type Buttress

Wetted Materials EPDM, Stainless Steel
