Home / LOGOPOWER 24 V / 2.5 A Stabilized power

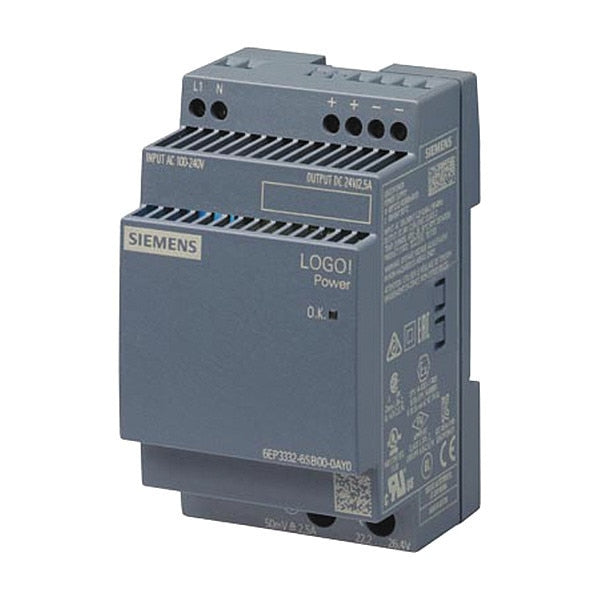

LOGOPOWER 24 V / 2.5 A Stabilized power

SKU
Brand Logo
Categories
Description Stabilized Power Supply, Input Voltage 100 to 240 V AC, Output Voltage 24V DC, Power Rating 60W, Output Amps 2.5, Mounting DIN Rail, Height 90 mm, Width 54 mm, Depth 53 mm, Series Logo!Power, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating 20, Status Indicator Green DC OK Signal
graingerSKU: , mscSKU: , zoro_no: G8363994, mongo_id: 65bbe6813aaddbd5a9034dd2

Web Price

$139.99 / each

Qty

Product Details

Connection Screw

Country of Origin (subject to change) Austria

Depth 53 mm

Features Output Overvoltage Protection, Parallel Switching for Enhanced Performance, Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product Function Output Voltage Adjustable, Property of the Output Short-Circuit Proof, Screw-Type Terminals, Wide-Range Input

Height 90 mm

Hz_ 47 to 63 Hz

Input Voltage 100 to 240 V AC

IP Rating 20

Mounting DIN Rail

Operating Temp. Range -25 Degrees C to 70 Degrees C

Output Amps 2.5

Output Voltage 24V DC

Package Quantity 1

Phase - Electrical Single

Power Rating 60W

Protection Short-Circuit Proof

Regulated / Unregulated Regulated

Series Logo!Power

Standards CE, cULus, cURus, NEC class 2, ATEX, cULus Class I Div. 2 (Group ABCD, T4), FM approval Class I, Div. 2, (Group ABCD, T4), CB, ABS, BV, DNV GL, LRS

Status Indicator Green DC OK Signal

Width 54 mm
