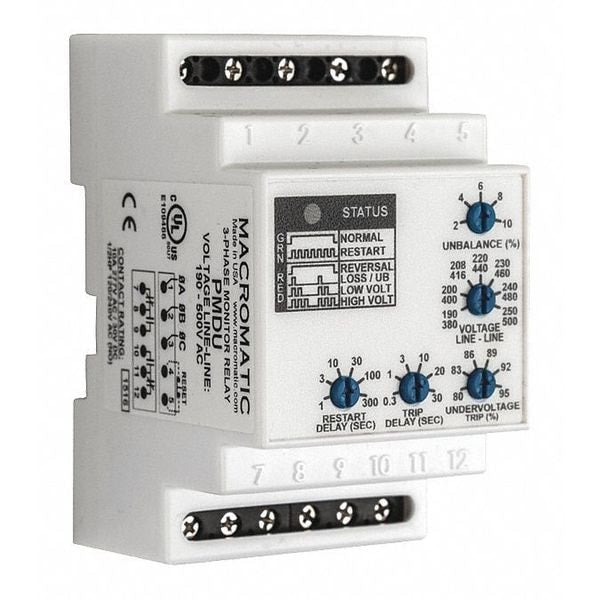

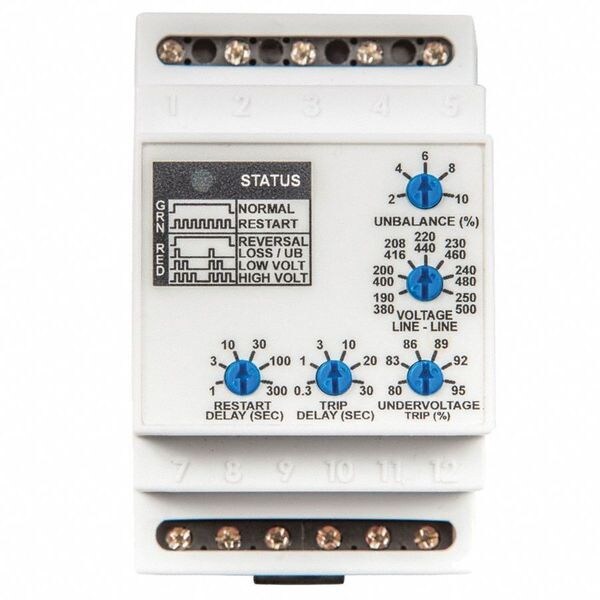

3 Phase Monitor Relay, DPDT, 500VAC, 0 Pin

SKU
Brand Macromatic
Categories
Description Phase Monitor Relay, Contact Form DPDT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Input Voltage 190 to 500V AC, Monitored Parameters Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage, Number of Pins 12, Restart Auto, Manual, Restart Time Delay 1 to 300 sec, Mounting Style DIN Rail, Body Depth 2.4 in, Body Height 3.5 in, Body Width 2.1 in, Electrical Operating Durability 100,000, For Use With Sensors, Frequency 50/60 Hz
graingerSKU: 45LU85, mscSKU: , zoro_no: G1803527, mongo_id: 65bbe6763aaddbd5a902fcb2

Web Price

$196.24 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 277V

Base Type DIN Rail

Body Depth 2.4 in

Body Depth - Relay 2.2 in

Body Height 3.5 in

Body Height - Relay 3.5 in

Body Width 2.1 in

Body Width - Relay 2.1 in

Configuration / Contact Rating DPDT. 10A @ 277V AC/30V DC; 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.)

Contact Amp Rating (Resistive) 10A @ 480/600VAC, 20A @ 28VDC

Contact Form DPDT

Contact Form - Relay DPDT

Contact Rating (AC) 10 A @ 277V

Contact Rating (DC) 10 A @ 30V

Country of Origin (subject to change) United States

Current Rating 10 A

DC Contact Rating - Relay 10A @ 30V

Drop-Out Range 80% to 95%

Electrical Connection Type Screw

Electrical Operating Durability 100,000

Enclosure Style Mounts on 35mm DIN rail or panel mounted, DIN-Rail

For Use With Sensors

Frequency 50/60 Hz

Input or Control Voltage 190 to 500V AC

Input or Control Voltage Range 190 to 500VAC

Input Voltage 190 to 500V AC

Item - Relay Phase Monitor Relay

Life Mechanical: 10,000,000 operations, Full Load: 100,000 operations

Load (Burden) Less than 40 VA

Maximum Operating Temperature 149 Degrees F

Maximum Switching Capacity 40 VA

Maximum Switching Voltage 550V

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -18.4 Degrees F

Minimum/Maximum Voltage 156-550V (PMDU); 77-152V (PMD120): 345-660V (PMD575), all 50/60Hz.+5%

Monitored Parameters Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage

Monitored Voltage 190-500V AC

Mounting - Relay DIN Rail

Mounting Style DIN Rail

Number of Contacts 2

Number of Pins 0

Number of Pins - Relay 12

Output 10A DPDT

Output Contacts 10A @ 277V AC/30V DC; 1/2HP @ 120/240V AC (N.O.),1/3HP @ 120/240V AC (N.C.), B300 Pilot Duty, R300 (N.O.)

Over Voltage Fixed 110% of Line Voltage Setting

Overall Depth 2.4 in

Overall Height - Relay 2.4 in

Overvoltage Fixed 110% of Line Voltage Setting

Package Quantity 1

Phase 3

Phase Loss Sensitivity Yes

Phase Loss Time Delay 0.1 sec

Phase Reversal Yes

Phase Reversal Time Delay 0.1 sec

Phase Unbalance 2 to 10%

Phase Unbalance Time Delay 0.3 to 30.0 sec

Pick Up Range 190 to 500VAC

Pins 0

Power Consumption 40 VA

Protection Phase Loss, Phase Reversal, Voltage Unbalance, Undervoltage & Overvoltage

Relay Mounting Style DIN-Rail

Reset As standard, the PMD Series relays are in the Automatic Reset mode. However, they can be set in the Manual Reset mode by connecting an external N.C. switch across terminals 4 and 5. Upon application of line voltage, the PMD Series will go into Manual Reset mode if it recognizes a closure across terminals 4 and 5. After a fault clears, the relay will not reset until the N.C. switch is opened.

Restart Auto, Manual

Restart Time Delay 1 to 300 sec

Socket Code Configurator DIN-Rail / 0

Standards CE Certified, cULus Listed

Temperature -28ÃÂ°to 65ÃÂ°C (-18ÃÂ°to 149ÃÂ°F)

Trip Delay Power Up and Restart After Fault Clear: 1.00 to 300.0 sec., Phase Loss and Reversal: 100 msec., Phase Unbalance: 0.30 to 30.0 sec., Undervoltage: 0.30 to 30.0 sec., Overvoltage: 0.30 to 30.0 sec.

Under Voltage 171 to 450V AC

Undervoltage 190 to 500V AC
