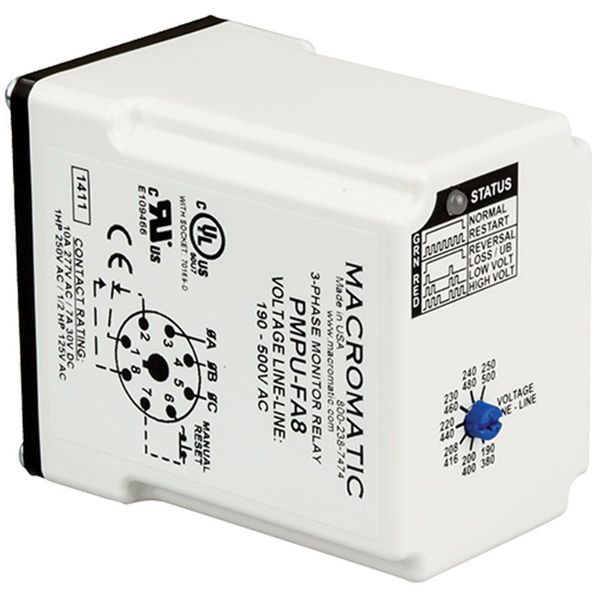

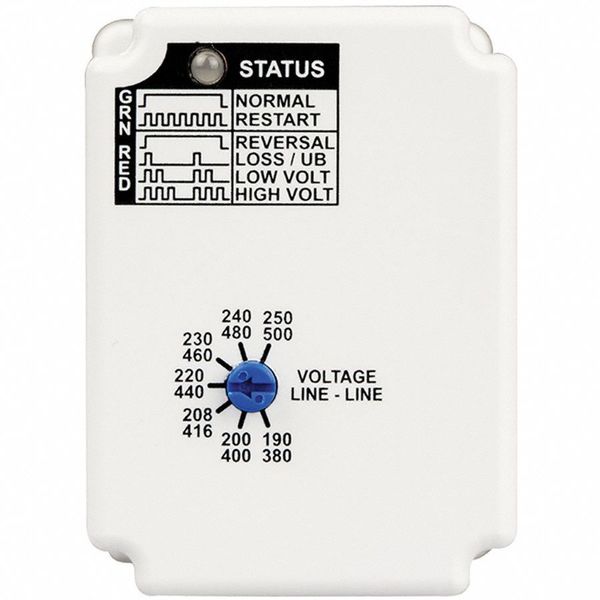

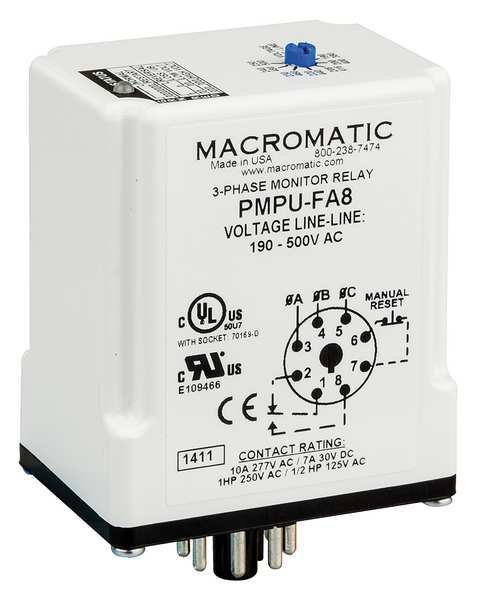

3 Phase Monitor Relay, SPDT, 500VAC, 8 Pin

SKU
Brand Macromatic
Categories
Description Phase Monitor Relay, Base Shape Octal, Contact Form SPDT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 7 A @ 30V, Current Rating 10 A, Input Voltage 190 to 500V AC, Monitored Parameters Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage, Number of Pins 8, Restart Auto, Manual, Restart Time Delay 2 sec, Mounting Style Plug-In, Body Depth 2.9 in, Body Height 2.4 in, Body Width 1.7 in, Electrical Operating Durability 100,000, For Use With Sensors, Frequency 50/60 Hz
graingerSKU: 6MPP2, mscSKU: , zoro_no: G3623356, mongo_id: 65bbe98f22d7a989a99612bc

Web Price

$101.49 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 277V

Base Shape Octal

Base Type Octal

Base Type - Plug In Relay Octal

Body Depth - Relay 2.4 in

Body Height 2.4 in

Body Height - Relay 2.9 in

Body Width 1.7 in

Body Width - Relay 1.7 in

Contact Amp Rating (Resistive) 10

Contact Form SPDT

Contact Form - Relay SPDT

Contact Rating (AC) 10 A @ 277V

Contact Rating (DC) 7 A @ 30V

Country of Origin (subject to change) United States

DC Contact Rating - Relay 7A @ 30V

Drop-Out Range 75% to 95%

For Use With Sensors

Frequency 50/60 Hz

Input or Control Voltage 190 to 500V AC

Input or Control Voltage Range 190 to 500VAC

Input Voltage 190 to 500V AC

Item - Relay Phase Monitor Relay

Maximum Switching Capacity 40 VA

Maximum Switching Voltage 550V

Mechanical Operating Durability 10,000,000

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Contacts 1

Number of Pins 8

Number of Pins - Relay 8

Over Voltage Fixed 110% of Line Voltage Setting

Overall Height - Relay 3.0 in

Package Quantity 1

Phase 3

Phase Loss Sensitivity Yes

Phase Loss Time Delay 0.1 sec

Phase Reversal Yes

Phase Reversal Time Delay 0.1 sec

Phase Unbalance 6%

Phase Unbalance Time Delay 4.0 sec

Pick Up Range 190 to 500VAC

Pins 8

Power Rating 3

Restart Auto, Manual

Restart Time Delay 2 sec

Socket 5X852

Socket Code Configurator Socket / Octal / 8

Standards CE Certified, cURus, UL Listed

Trip Delay Power Up and Restart After Fault Clear: 2 sec., Phase Loss and Reversal: 100 msec., Phase Unbalance: 4 sec., Undervoltage: 4 sec., Overvoltage: 4 sec.

Under Voltage 171 to 450V AC

Voltage Unbalance 6
