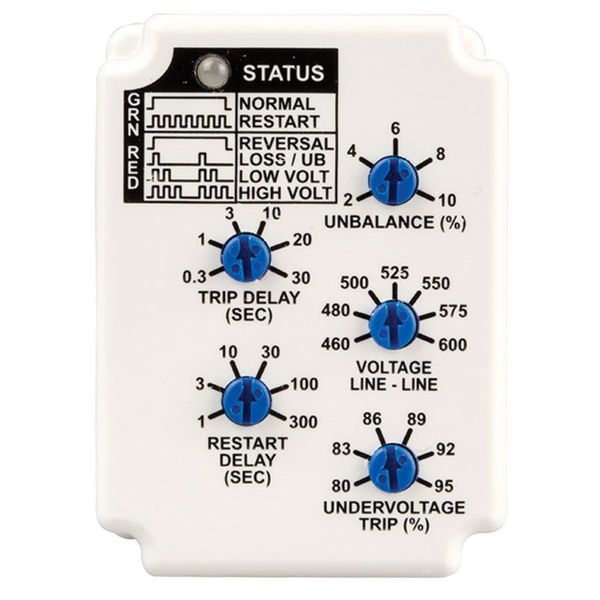

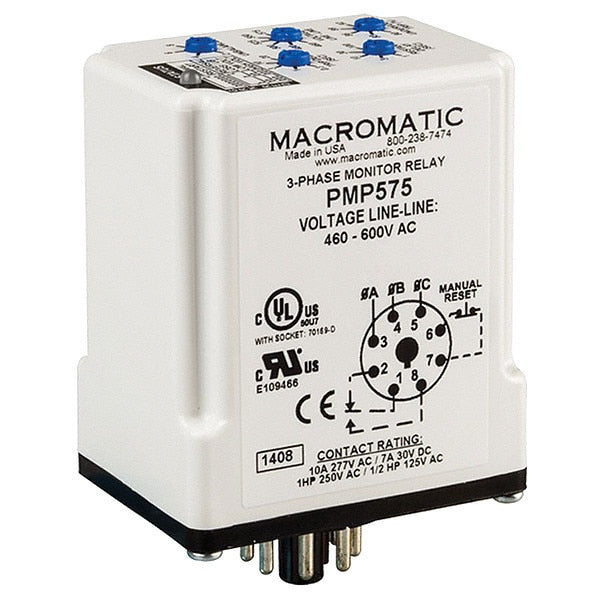

3 Phase Monitor Relay, SPDT, 600VAC, 8 Pin

SKU
Brand Macromatic
Categories
Description Phase Monitor Relay, Base Shape Octal, Contact Form SPDT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 7 A @ 30V, Current Rating 10 A, Input Voltage 460 to 600V AC, Monitored Parameters Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage, Number of Pins 8, Restart Auto, Manual, Restart Time Delay 1 to 300 sec, Mounting Style Plug-In, Body Depth 2.9 in, Body Height 2.4 in, Body Width 1.7 in, Electrical Operating Durability 100,000, For Use With Sensors
graingerSKU: 45LU84, mscSKU: , zoro_no: G1803536, mongo_id: 65bbee2b526e052139af371a

Web Price

$128.74 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 277V

Base Shape Octal

Base Type Octal

Base Type - Plug In Relay Octal

Body Depth 2.9 in

Body Depth - Relay 2.4 in

Body Height 2.4 in

Body Height - Relay 2.9 in

Body Width 1.7 in

Body Width - Relay 1.7 in

Configuration / Contact Rating SPDT. 10A @ 277V AC / 7A @ 30V DC

Contact Amp Rating (Resistive) 10

Contact Form SPDT

Contact Form - Relay SPDT

Contact Rating (AC) 10 A @ 277V

Contact Rating (DC) 7 A @ 30V

Country of Origin (subject to change) United States

Current Rating 10 A

DC Contact Rating - Relay 7A @ 30V

Drop-Out Range 80% to 95%

Electrical Connection Type Pin

Electrical Operating Durability 100,000

Enclosure Style Plug-in case utilizing industry-standard 8 pin octal sockets, Plug-in

For Use With Sensors

Frequency 50/60 Hz

Input or Control Voltage 480 to 600V AC

Input or Control Voltage Range 480 to 600VAC

Input Voltage 460 to 600V AC

Item - Relay Phase Monitor Relay

Life Mechanical: 10,000,000 operations, Full Load: 100,000 operations

Load (Burden) Less than 40 VA

Maximum Operating Temperature 149 Degrees F

Maximum Switching Capacity 40 VA

Maximum Switching Voltage 660V

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -18.4 Degrees F

Minimum/Maximum Voltage 156-550V (PMPU); 77-152V (PMP120): 345-660V (PMP575), 50-60Hz.ÃÂ±5%

Monitored Parameters Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage

Monitored Voltage 460-600V AC

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Contacts 1

Number of Pins 8

Number of Pins - Relay 8

Output 10A SPDT

Output Contacts 10A @ 277V AC / 7A @ 30V DC;

Over Voltage Fixed 110% of Line Voltage Setting

Overall Depth 2.4 in

Overall Height - Relay 3.0 in

Overvoltage Fixed 110% of Line Voltage Setting

Package Quantity 1

Phase 3

Phase Loss Sensitivity Yes

Phase Loss Time Delay 0.1 sec

Phase Reversal Yes

Phase Reversal Time Delay 0.1 sec

Phase Unbalance 2 to 10%

Phase Unbalance Time Delay 0.3 to 30.0 sec

Pick Up Range 460 to 600VAC

Pins 8

Power Consumption 40 VA

Protection Phase Loss, Phase Reversal, Voltage Unbalance, Undervoltage & Overvoltage

Relay Mounting Style Socket

Reset As standard, the PMP Series relays are in the Automatic Reset mode. However, they can be set in the Manual Reset mode by connecting an external N.C. switch across terminals 6 and 7. Upon application of line voltage, the PMP Series will go into Manual Reset mode if it recognizes a closure across terminals 6 and 7. After a fault clears, the relay will not reset until the N.C. switch is opened.

Restart Auto, Manual

Restart Time Delay 1 to 300 sec

Socket 5X852

Socket Code A

Socket Code Configurator Socket / Octal / 8

Standards CE Certified, cULus Listed, cURus

Temperature -28ÃÂ°to 65ÃÂ°C (-18ÃÂ°to 149ÃÂ°F)

Trip Delay Power Up and Restart After Fault Clear: 1.00 to 300.0 sec., Phase Loss and Reversal: 100 msec., Phase Unbalance: 0.30 to 30.0 sec., Undervoltage: 0.30 to 30.0 sec., Overvoltage: 0.30 to 30.0 sec.

Under Voltage 432 to 540V AC

Undervoltage 460 to 600V AC
