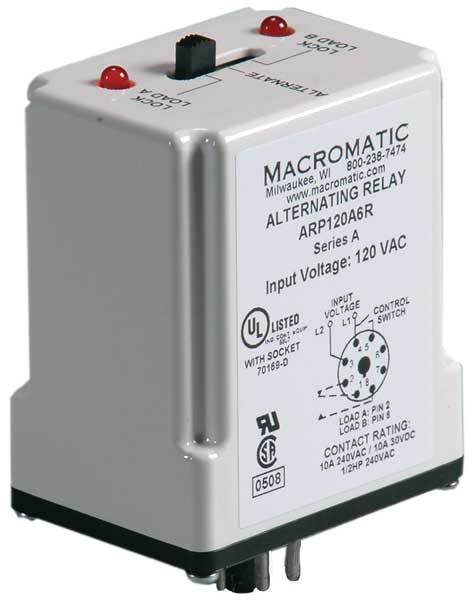

Alternating Relay, SPDT, 120VAC, 10A, 8 Pin

Alternating Relay, SPDT, 120VAC, 10A, 8 Pin

  • Macromatic
  • Alternating Relay, Base Shape Octal, Coil Voltage 120V AC, Contact Form SPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 24V, Flat Pin Width Not Applicable, Number of Pins 8, Operating Modes Alternate, Always Energize Load 1, Always Energize Load 2, Status Indicator LED Indicates Next Load to Energize, Alternating Mode Selection Method Selector Switch, Burden Less than 3VA, Mounting Style Plug-In, Power Consumption 3 VA, Body Depth 2.9 in, Body Height 2.4 in, Body Width 1.7 in

    graingerSKU: 6MPP1, mscSKU: , zoro_no: G3635624, mongo_id: 65bbe8f722d7a989a9927cc8

Web Price
$88.11 / each
Qty

Product Details

10A @ 240V
Selector Switch
10
Octal
Octal
Octal
2.9 in
1.7 in
2.4 in
2.9 in
1.7 in
2.4 in
Less than 3VA
120V AC
120V AC
10A @ 240V AC/24V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.)
SPDT
SPDT
10 A @ 240V
10 A @ 24V
120V AC
United States
10A @ 28V
100,000
Plug-in case utilizing industry-standard octal sockets, Plug-in
Not Applicable
50/60 Hz
Duplexor
1/3 hp
1/3 hp
Two LEDs marked LOAD 1 and LOAD 2
120V AC
Alternating Relay
Mechanical: 10,000,000 operations; Full Load: 100,000 operations
Less than 3 VA
132VAC
149 Degrees F
10,000,000
-18 Degrees F
Plug In
Plug-In
1
8
8
Alternate, Always Energize Load 1, Always Energize Load 2
Alternate, Always Energize Load 1, Always Energize Load 2
SPDT
3.1 in
3.1 in
1
8
3 VA
3.0 VA
Socket
5X852
A
Octal / 8
Switch to select normal alternation or lock Loads 1 or 2
CE Certified, CSA Certified, UL E109466
LED Indicates Next Load to Energize
-28°to 65°C (-18°to 149°F)
Duplex
AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation (12 & 24V only): +10/-15% of nominal.
