Name: Current Sensing Relay, SPDT Form, 120VAC
Brand: Macromatic
SKU: G6546893
Price: 110.36 USD
Availability: InStock

Home / Current Sensing Relay, SPDT Form, 120VAC

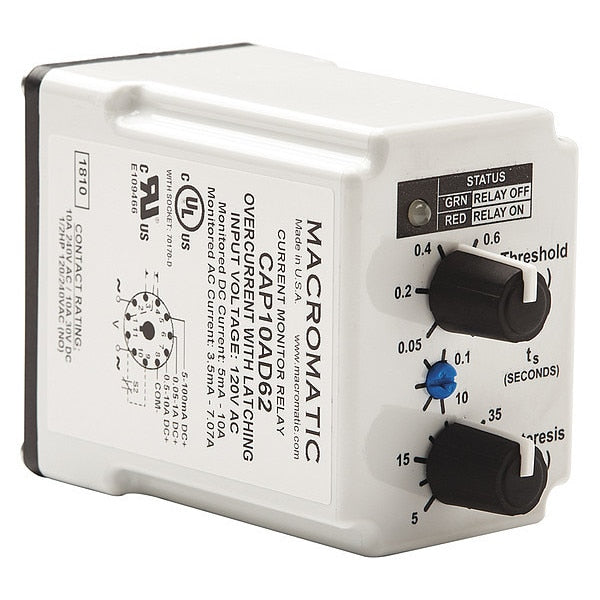

Current Sensing Relay, SPDT Form, 120VAC

SKU
Brand Macromatic
Categories
Description Current Sensor Relay, Contact Form SPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 7 A @ 28V, Core Type Internal, Current Rating 10 A, Input Voltage 120V AC, Monitored Parameters Overcurrent, Mounting Style Plug-In, Number of Pins 11, Trip Point 0.1 to 10 A, Trip Point Type Adjustable, Electrical Connection Terminal Strip, Status Indicator LED Indicator, Body Depth 2.9 in, Body Height 2.4 in, Body Width 1.7 in, Electrical Operating Durability 100,000, Electrical Phase Three
graingerSKU: 485R27, mscSKU: , zoro_no: G6546893, mongo_id: 65bbe5cb3aaddbd5a9fe7f11

Web Price

$110.36 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 240V

Body Depth 2.9 in

Body Height 2.4 in

Body Width 1.7 in

Configuration / Contact Rating SPDT. 10A @ 240V AC / 7A @ 28V DC SPDT, 1/4 HP @ 120V AC (N.O.)

Contact Form SPDT

Contact Form - Relay SPDT

Contact Rating (AC) 10 A @ 240V

Contact Rating (DC) 7 A @ 28V

Control Voltage 120V AC

Core Type Internal

Core Type - Relay Internal

Country of Origin (subject to change) United States

Current Range DC: 5 -100mA, 0.05 - 1A, and 0.5 - 10A ; AC: 3.5 - 70.7mA, 0.035 - 0.707A, and 0.35 - 7.707A

Current Rating 10 A

DC Contact Rating - Relay 8A @ 28V

Electrical Connection Terminal Strip

Electrical Connection Type Pin

Electrical Operating Durability 100,000

Electrical Phase Three

Enclosure Style Plug-in case utilizing industry-standard 11 pin octal sockets, Plug-in

Frequency 50/60 Hz

Function Overcurrent AC/DC

Indicator LED Green when Input Voltage is applied; Red when Relay is energized

Input or Control Voltage 120V AC

Input Voltage 120V AC

Item - Relay Current Sensing Relay

Life Mechanical: 10,000,000 operations; Full Load: 100,000 operations

Load (Burden) Less than 5VA for all voltages

Max. Inrush Current 150 A

Maximum Operating Temperature 149 Degrees F

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -18 Degrees F

Monitored Parameters Overcurrent

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 11

Operating Current 0.05-1 A, 0.5-10 A, 5-100 A

Output 10A SPDT

Output Contacts 10A @ 240V AC / 7A @ 28V DC SPDT, 1/4 HP @ 120V AC (N.O.)

Overall Depth 3.5 in

Package Quantity 1

Pick-up & Drop-out Fixed 100ms

Relay Mounting Style Socket

Sensing Amp Range 0.10 to 10.00A

Sensing Delay On Power 0.1 - 10 seconds

Sensing delay on power-up ts 0.1 - 10 seconds

Sensor Opening Internal

Series CAP Series

Socket Code B

Socket Code Configurator Socket / 11

Standards cULus Listed, cURus

Status Indicator LED Indicator

Temperature -28oto 65oC (-18oto 149oF)

Three built-in current ranges to monitor both AC & DC current 5 -100ma DC (3.5 - 70.7ma AC); 0.05 - 1A DC (0.035 - 0.707A AC); and 0.5 - 10A DC (0.35 - 7.07A AC)

Trip Delay 0.1 to 10 sec

Trip Delay Type Fixed

Trip Point 0.1 to 10 A

Trip Point Type Adjustable

Type of Output Relay

Voltage Tolerance AC Operation: +10/-15% of nominal at 50/60 Hz.
