Home / Time Delay Relay, 12VDC, 10A, DPDT, 9 sec.

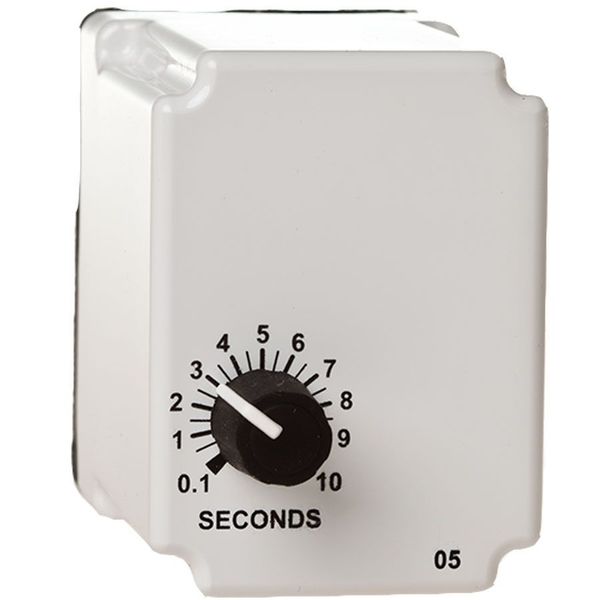

Time Delay Relay, 12VDC, 10A, DPDT, 9 sec.
Time Delay Relay, 12VDC, 10A, DPDT, 9 sec.
Time Delay Relay, 12VDC, 10A, DPDT, 9 sec.

Time Delay Relay, 12VDC, 10A, DPDT, 9 sec.

  • Macromatic
  • Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 12V DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Off Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 240V AC, Minimum Time Setting 9 sec, Maximum Time Setting 15 min, Number of Pins 11, Sealing Enclosed, Mounting Style Plug-In

    graingerSKU: 33VC24, mscSKU: , zoro_no: G8590373, mongo_id: 65bbe5a83aaddbd5a9fd99f0

Web Price
$48.74 / each
Qty

Product Details

10A @ 240V
Analog
Potentiometer
Potentiometer
Octal
Octal
Octal
2.9 in
1.7 in
1.7 in
2.9 in
2.3 in
2.4 in
2W
12V DC
12V DC
DPDT & SPDT. 10A @ 240V AC/30V DC, 1/2HP @ 120/240V AC (N.O.),1/3HP @ 120/240V AC (N.C.), B300 & R300
10A
DPDT
DPDT
Silver Nickel
10 A @ 240V
10 A @ 30V
12V DC
United States
10 A
10A @ 30V
Off Delay
Off Delay
Socket
Pin
100,000
Plug-in case utilizing industry-standard 8 or 11 pin octal sockets
Enclosed
+2% or 100ms, whichever is greater
Not Applicable
50/60 Hz
Off Delay
Off Delay
50 Hz, 60 Hz
50/60
240V AC
IP20
Single Function Timing Relay
Mechanical: 2,000,000 operations; Full Load: 100,000 operations
2 VA
15 min.
15 min
122 Degrees F
+5%, -0%;
15 min
1 - 59 min
10,000,000
9.00 sec.
9 sec
-18 Degrees F
+0%, -50%.
9 sec
Plug-in
plug In
Plug In
Plug-In
1
11
11
2
+0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
10A DPDT
10A @ 240V AC, 8A @ 28V DC, 1/2HP @ 240V AC, 1/4HP @ 120V AC, B300 & R300
3.5 in
3.1 in
1
11
2 VA
2 W
Socket
+1% or 50ms, whichever is greater
Time-Limit Reset
0.1 Seconds
Enclosed
1EGP2, 1EGP4, 6X156
A
Socket / Octal / 8
CE Certified, CSA Certified, UL Listed, UL Socket
None
-28°to 65°C (-18°to 149°F)
9 sec - 15 min
Analog
9 - 900 seconds
Off Delay
AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation: +10/-15% of nominal.
