Home / Time Delay Relay, 24VAC/DC, 10A, DPDT

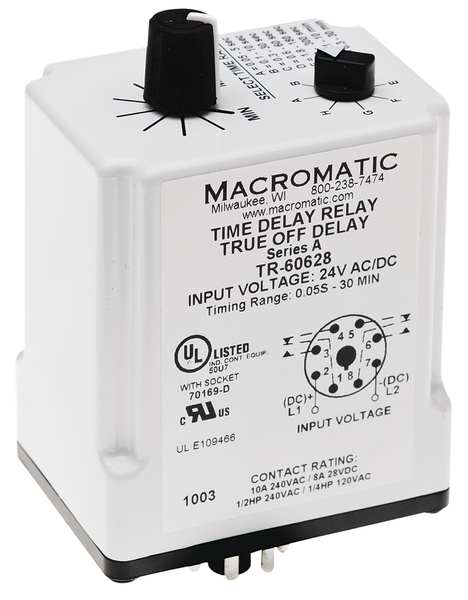

Time Delay Relay, 24VAC/DC, 10A, DPDT

Time Delay Relay, 24VAC/DC, 10A, DPDT

  • Macromatic
  • Single Function Time Delay Relay, Adjustment Method Rotary Switch, Base Shape Octal, Coil Voltage 24V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 8 A @ 28V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Off Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 240V AC, Minimum Time Setting 0.05 sec, Maximum Time Setting 30 min, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In

    graingerSKU: 5WMK1, mscSKU: , zoro_no: G2429987, mongo_id: 65bbee06526e052139ae51a2

Web Price
$108.61 / each
Qty

Product Details

10A @ 240V
Analog
Rotary Switch
Potentiometer
Octal
Octal
Octal
2.9 in
1.7 in
1.7 in
2.9 in
2.3 in
2.4 in
2VA
24V AC/DC
24V AC/DC
1EGP3, 1EGP5, 5X852
DPDT. 10A @ 240V AC, 8A @28V DC, 1/2 HP @ 240V AC, 1/4HP@ 120V AC, B300 & R300
10A
DPDT
DPDT
Silver Nickel
10 A @ 240V
8 A @ 28V
24V AC/DC
United States
10 A
8A @ 28V
Off Delay
Off Delay
Socket
Pin
Plug-in case utilizing industry-standard 8 pin octal sockets
Enclosed
Not Applicable
50/60 Hz
Power Off Delay (True Off Delay)
Power Off Delay (True Off Delay)
50 Hz, 60 Hz
50/60
240V AC
IP20
Single Function Timing Relay
Mechanical: 2,000,000 operations; Full Load: 100,000 operations
2 VA
30 Min.
30 min
149 Degrees F
30 min
1 - 59 min
2,000,000
0.05 sec.
0.05 sec
-18 Degrees F
0.05 sec
Plug-in
plug In
Plug In
Plug-In
1
8
8
10
10A DPDT
10A @ 240V AC, 8A @ 28V DC, 1/2HP @ 240V AC, 1/4HP @ 120V AC, B300 & R300
3.5 in
3.1 in
1
8
2 VA
2 VA
Socket
+1% or 50ms, whichever is greater
Time-Limit Reset
0.1 Seconds
Enclosed
Maximum Setting (Adjustable): +5%, -0%; Minimum Setting (Adjustable): +0%, -50%.
1EGP3, 1EGP5, 5X852
A
Socket / Octal / 8
CE Certified, UL Listed
None
-28°to 65°C (-18°to 149°F)
0.05 sec - 30 min
Analog
Multi-range (8): 0.05 seconds - 30 minutes
Power Off Delay
AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation: +10/-15% of nominal.
