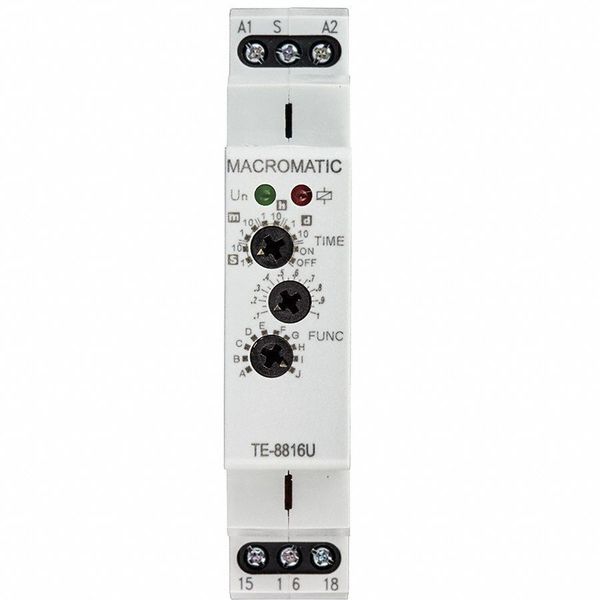

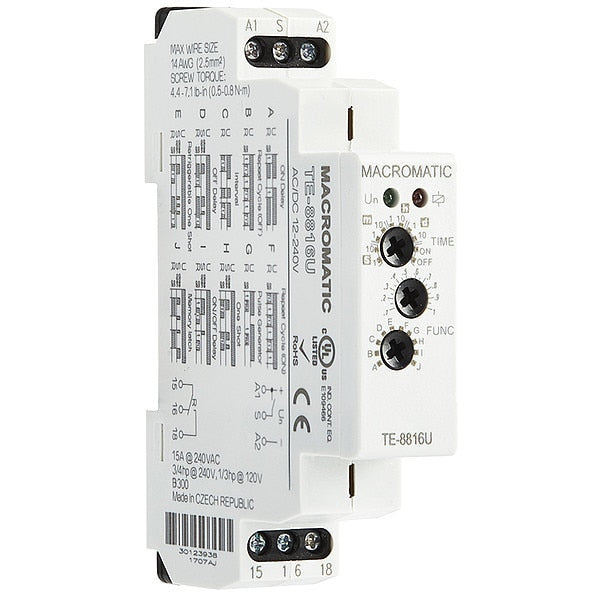

Time Delay Rlay, 12 to 240VAC/DC, 15A, DPDT
Time Delay Rlay, 12 to 240VAC/DC, 15A, DPDT

Time Delay Rlay, 12 to 240VAC/DC, 15A, DPDT

  • Macromatic
  • Multi-Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Square, Coil Voltage 240V AC, Contact Form DPDT, Contact Rating (AC) 15 A @ 240V, Contact Rating (DC) Not Applicable, Current Rating 15 A, Number of Delay Functions 10, Delay Function Multi Function, Electrical Connection Screw Clamp, IP Rating IP20, Input Voltage 12 to 240V AC/DC, Minimum Time Setting 0.1 sec, Maximum Time Setting 10 day, Number of Pins 9, Sealing Enclosed, Mounting Style DIN Rail

    graingerSKU: 23NV43, mscSKU: , zoro_no: G6135385, mongo_id: 65bbe8339a749db82277c2c6

Web Price
$78.74 / each
Qty

Product Details

15A @ 240V
Analog
Potentiometer
Potentiometer
Square
Not Applicable
2.52 in
0.69 in
3.55 in
3.55 in
0.69 in
2.52 in
3VA
240V AC
12 to 240V AC/DC
15A
DPDT
DPDT
Silver Alloy
15 A @ 240V
Not Applicable
Universal: 12 - 240V AC/DC
Czechia
15 A
Multi Function
Screw Clamp
Screw
70,000
Enclosed
50/60 Hz
On Delay, Interval On, Flasher(Off First), Flasher(On First), Off Delay, Single Shot, On Delay/Off Delay, Latching Relay, Pulse Generator(Pulse=0.5 Sec.),Watchdog
Flasher(Off First), Flasher(On First), Interval On, Latching Relay, Off Delay, Off Delay/On Delay, On Delay, One Shot, Pulse Generator(Pulse=0.5 Sec.),Watchdog
50 Hz, 60 Hz
50/60
Green-Input Voltage; Red (Flashing)-Timing or Red (Steady)-Relay ON
12 to 240V AC/DC
IP20
Multi-Function Timing Relay
Mechanical: 10,000,000 operations; Full Load: 70,000 operations
3VA (AC), 1.7W (DC)
240 hr.
10 day
131 Degrees F
10 day
1 day or more
10,000,000
0.1 sec.
0.1 sec
-4 Degrees F
0.1 sec
17.5mm DIN-Rail
Din Rail
DIN Rail
DIN Rail
10
10
9
9
1, 2, 4, 6, 9, 11
15A DPDT
15A @ 240V AC, 1/3HP @ 120V AC, 3/4HP @ 240V AC, B300
3.5 in
3.55 in
1
9
1.7 W, 3 VA
1.7 W, 3 VA
DIN-Rail
0.002
Time-Limit Reset
0.150 Seconds
Enclosed
Not Applicable
DIN-Rail / Square / 9
CE Certified, UL Listed
LED
-20°to 55°C (-4°to 131°F)
0.1 sec - 10 day
Analog
Multi-range (8): 0.1 seconds - 10 days
Flasher, Interval Delay, Latching, Off Delay, On Delay, One Shot, Pulse Generator
-15% of 12V, +10% of 240V
