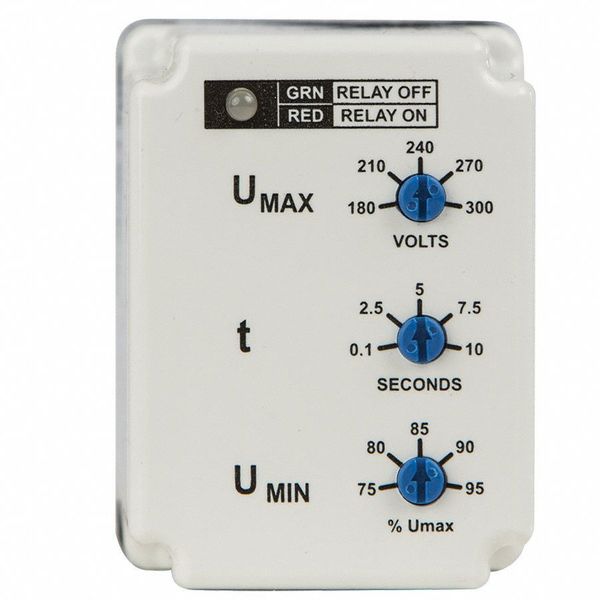

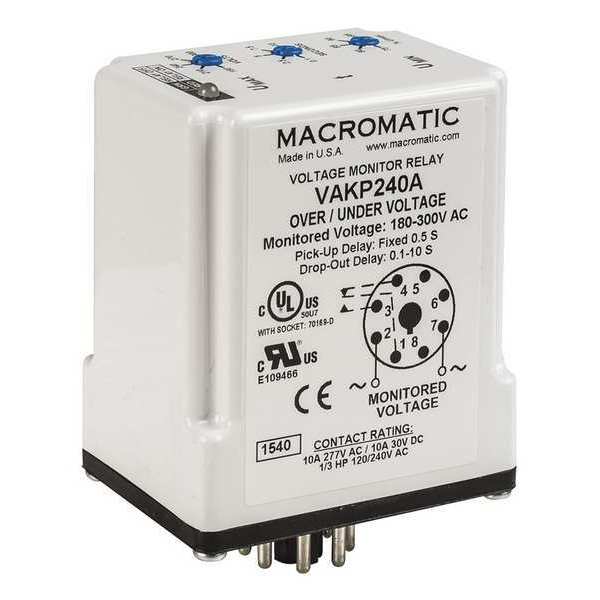

Voltage Monitor Relay, 120VC, Plug-In

SKU
Brand Macromatic
Categories
Description Voltage Sensing Relay, Base Shape Octal, Current Rating 10 A, Input Voltage 120V AC, Pick Up Range 90 to 150V AC, Drop-Out Range 75 Percent to 95 Percent, Monitored Parameters Overvoltage; Undervoltage, Number of Pins 8, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 7 A @ 30V, Mounting Style Plug-In, Body Depth 2.9 in, Body Height 2.4 in, Body Width 1.7 in, Electrical Operating Durability 100,000, Frequency 50/60 HZ, Maximum Operating Temperature 149 Degrees F
graingerSKU: 45LV08, mscSKU: , zoro_no: G1820835, mongo_id: 65bbe8f722d7a989a9927cc7

Web Price

$123.24 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 240V

Base Shape Octal

Base Type Octal

Base Type - Plug In Relay Octal

Body Depth 2.9 in

Body Depth - Relay 1.7 in

Body Height 2.4 in

Body Height - Relay 3.5 in

Body Width 1.7 in

Body Width - Relay 2.4 in

Configuration / Contact Rating DPDT (12-120V relays) and SPDT (240-480V relays). 10A @ 240VAC, 7A @30V DC, 1/4HP @ 120/240V AC, C300

Contact Amp Rating (Resistive) 10

Contact Form DPDT

Contact Form - Relay DPDT

Contact Rating (AC) 10 A @ 240V

Contact Rating (DC) 7 A @ 30V

Country of Origin (subject to change) United States

Current Rating 10 A

DC Contact Rating - Relay 7A @ 30V

Drop Out Voltage Setting Adjustable % of Pick-up Voltage Setting

Drop-out (Umin) Adjustable from 75-95% of the Pick-up setting

Drop-Out Range 75% to 95%

Electrical Connection Type Pin

Electrical Operating Durability 100,000

Enclosure Style Plug-in case utilizing industry-standard 8 pin octal sockets, Plug-in

Frequency 50/60 HZ

Function Over/Undervoltage Relay w/ adjustable time delay on drop-out

Indicator LED Red when Relay is energized; Green when Relay is Off

Input or Control Voltage 120V AC

Input Voltage 120V AC

Item - Relay Voltage Sensing Relay

Life Mechanical: 10,000,000 operations; Full Load: 100,000 operations

Load (Burden) Less than 2 VA (12-120V); 30VA (240V & 480V)

Maximum Operating Temperature 149 Degrees F

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -18 Degrees F

Monitored Parameters Overvoltage; Undervoltage

Monitored Voltage 120V AC

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Contacts 2

Number of Pins 8

Number of Pins - Relay 8

Output 10A DPDT

Output Contacts 10A @ 240V AC, 7A @ 30V DC, 1/4HP @ 120/240V AC, C300

Overall Depth 3.5 in

Overall Height - Relay 4.0 in

Package Quantity 1

Phase 1

Pick Up Range 90 to 150V AC

Pick-up (Umax) Adjustable across full range as shown on the product nameplate

Pins 8

Power Consumption 2 VA

Relay Mounting Style Socket

Response Times Pick-up: 500 ms; Drop-out (t): Adjustable 0.1-10 Seconds

Socket 5X852, 1EGP3, 1EGP5

Socket Code A

Socket Code Configurator Octal / 8

Standards CE Certified; UL Listed

Temperature -28ÃÂ°to 65ÃÂ°C (-18ÃÂ°to 149ÃÂ°F)

Trip Delay 0.10 to 10 sec

Voltage Tolerance +50%/-50% of nominal AC voltage (50-60Hz,+5%) or DC voltage; No separate input voltage is required since unit is powered by monitored voltage.
