Home / Float Switch, SS Body, 3.5" dia. Float

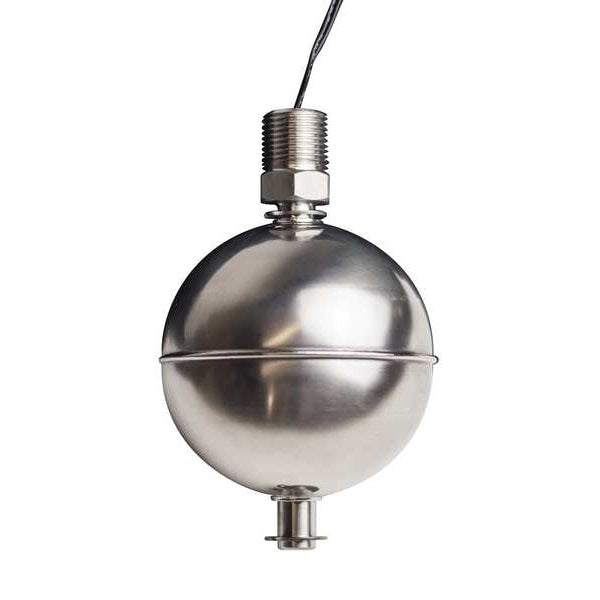

Float Switch, SS Body, 3.5" dia. Float

SKU
Brand Madison
Categories
Description Float Switch, Switch Function Selectable, Open or Closed Vertical Tanks Mounting, Float Travel 1/8 in, NEMA Rating 65, Tank Connection Size 1/2 in NPT, Max. Pressure 300 psi, VA Rating 100, Operating Temp. Range 392 Degrees F, Overall Length 3.5 in, Float Material Stainless Steel, Float Length 4.81 in, Float Dia. 3.5 in, Stem Material Stainless Steel, Stem Length 4.81 in, Height 4.81 in, Width 3.5 in, Contact Form SPST, Max. Current 1 A, Max. Voltage 240 V AC, Body Material Stainless Steel
graingerSKU: , mscSKU: , zoro_no: G600892828, mongo_id: 65bbe69e3aaddbd5a903fa43

Web Price

$448.74 / each

Qty

Product Details

Body Material Stainless Steel

Conduit Size 1/2 in

Contact Form SPST

Country of Origin (subject to change) United States

Electrical Connections Teflon Insulated

Features Detects High and Low Levels in Tanks, Extra Large Float Buoyancy, Switch Loads Up to 100 Watts, Ideal for High Pressure & High Temperature Applications and Where Superior Corrosion Resistance is Required

Float Dia. 3.5 in

Float Length 4.81 in

Float Material Stainless Steel

Float Position 2.5

Float Rod Angle 30 Degrees

Float Specific Gravity 0.35

Float Travel 1/8 in

Height 4.81 in

Max. Current 1 A

Max. Pressure 300 psi

Max. Voltage 240 V AC

Mounting Open or Closed Vertical Tanks
