Home / Digital Depth Gage, 0 to 8" Range

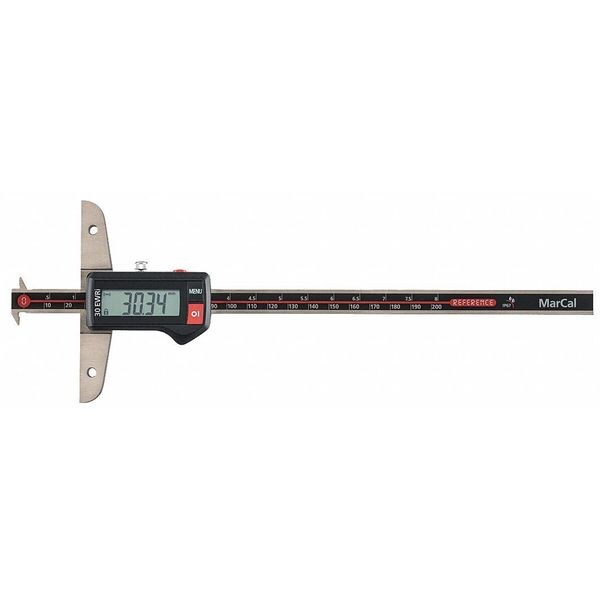

Digital Depth Gage, 0 to 8" Range

SKU
Brand Mahr
Categories
Description Digital Depth Gage, SPC Output Yes, Base Style Flat, Range 0 to 8 In., Resolution 0.0005 In., Base Length 4 In., Number of Measuring Rods 0, Long Form Calibration Certificate No, IP Rating 67, Anvil Flat, Spindle Flat, Number of Gauges 1, Rotating Spindle (Yes/No) No, Anvil Material Hardened Steel, Spindle Material Hardened Steel, Lock Nut Type Screw
graingerSKU: 446F21, mscSKU: , zoro_no: G5497919, mongo_id: 65bbe6903aaddbd5a903b30c

Web Price

$1,053.74 / each

Qty

Product Details

Accuracy +/-0.03 mm

Actuation Style Slide

Anvil Flat

Anvil Material Hardened Steel

Base Length 100 mm

Base Style Flat

Blade Material Stainless Steel

Blade Tip Shape Flat

Blade Width 4 mm

Case Included Yes

Compatible Wireless Transmitter MarConnect

Contact Point Shape Flat

Coolant Resistant Yes

Country of Origin (subject to change) China

Data Output Type Wireless

Depth Gauge Type Blade-Style

Dimension Type Inch/Metric

Features Integrated Wireless, On/Off and Inch/mm, Immediate Measurement Due to The Reference System, Locking Screw, Dirt Wipers are Integrated In The Side, Excellent Resistance Against Dust, Coolants and Lubricants, High Contrast LCD with 8.5mm High Digits, Lapped Guide Way, Measuring Range Up to 200mm, Height of Digits 11mm

Functions Auto and Manual On/Off, DATA (Data Transmission), HOLD (Storage Of Measured Values), Inch/mm Conversion, Key Lock Function, Preset For Entering A Numerical Value, Reset: Set Display To Zero

Included Certification Certificate of Conformance

Includes Instruction Manual

Includes Battery Yes

IP Rating IP67

Lock Nut Type Screw

Long Form Calibration Certificate No

Maximum Measurement - Inch 8 in

Maximum Measurement - mm 200 mm

Minimum Measurement - Inch 0 in

Minimum Measurement - mm 0 mm

Number of Gauges 1

Number of Measuring Rods 0
