Home / Surface Tester, 6.30" x 3"x 2" Dimensions

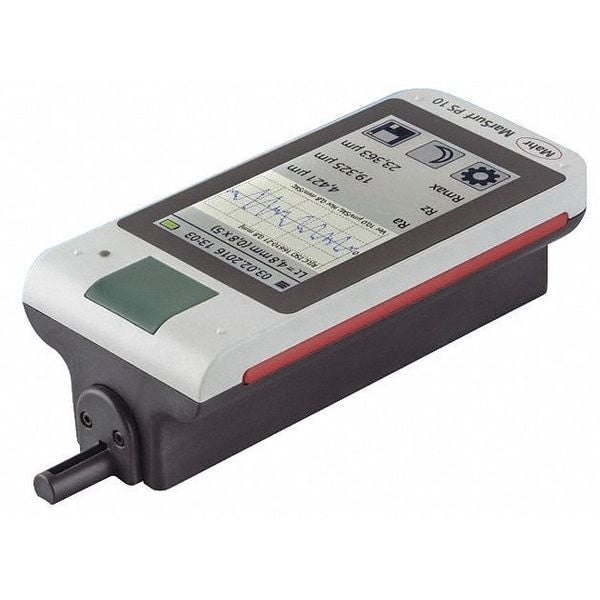

Surface Tester, 6.30" x 3"x 2" Dimensions

SKU
Brand Mahr
Categories
Description Portable Surface Roughness Tester with Onboard Display, Features Compact Roughness Measuring Instrument for Mobile Use, Simple And Intuitive to Use, Over 1200 Measurements without Having to Recharge the Instrument, An All-In-One Solution. Small And Lightweight, Removable Drive Unit, Roughness Standard Stored Within Housing Aids In Reducing Errors, Automatic Cutoff Selection, Measuring Range 0.350 mm
graingerSKU: 446F41, mscSKU: 37564051, zoro_no: G5531762, mongo_id: 65bbe6d73aaddbd5a9058f8e

Web Price

$3,849.99 / each

Qty

Product Details

Analysis Graph Choice of Wavelength, Automatic Cutoff Choice with Parameters in Table

Arbitrary Length (In.) 0.060, 0.190, 0.590

Calibration Functions Dynamic

Case Type Carry Case with Shoulder Strap

Compatible Data Output Cable Mfr. No. 4102357, Mfr. No. 4102410

Compatible Memory Card MicroSD

Country of Origin (subject to change) Germany

Data Export Formats TXT, X3P, CSV, PDF

Data Output Connection Type USB, RS232

Data Output Type Cable

Detector Measuring Force 0.75 mN

Digital Filter Type Gaussian

Dimensions (In.) 6.30 x 3.00 x 2.00

Dimensions - Display Unit 160 mm x 77 mm x 50 mm

Dimensions - Drive Unit 160 mm x 77 mm x 50 mm

Display Functions Analysis Graph, Language Selection, Standard Selection, Print & Export Data, Save Data, Select Sampling Length

Display Languages German, English, French, Italian, Spanish, Portugese, Dutch, Swedish, Russian, Polish, Czech, Japanese, Chinese, Korean, Hungarian, Turkish, Romanian

Display Screen Size 4.3 in

Display Type TFT Touch Screen

Drive Unit Principle Standard

Features Compact Roughness Measuring Instrument for Mobile Use, Simple And Intuitive to Use, Over 1200 Measurements without Having to Recharge the Instrument, An All-In-One Solution. Small And Lightweight, Removable Drive Unit, Roughness Standard Stored Within Housing Aids In Reducing Errors, Automatic Cutoff Selection

For Use With PS-10/ M310 Probes

Includes Calibration Patch, Case, AC Adapter, Instruction Manual

Includes Case Yes

Includes Printer No

IP Rating IP40

Maximum Operating Temperature - C 45 Degrees C

Maximum Operating Temperature - F 112 Degrees F

Measuring Condition Standards DIN ISO/JIS

Measuring Range 0.350 mm

Measuring Range (In.) 350 micrometer

Measuring Range (mm) 0.35 mm

Measuring Range Ra 350 micrometer

Measuring Range Rz 350 micrometer

Memory Storage Capacity 500K

Minimum Operating Temperature - C 5 Degrees C

Minimum Operating Temperature - F 41 Degrees F

Number of Parameters Measured 31

Number of Sampling Spans 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16

Operating Position Horizontal, Vertical, Upside Down

Operating Temperature Range 41 Degrees F to 112 Degrees F / 5 Degrees C to 45 Degrees C

Output USB

Package Quantity 1

Parameters Measured Ra, Rq, Rz (Ry (JIS) is Equivalent to Rz), Rz (JIS), Rmax, Rp, RpA (ASME), Rpm (ASME), Rpk, Rk, Rvk, Mr1, Mr2, A1, A2, Vo, Rt, RPc, Rmr (tp (JIS, ASME) is Equivalent to Rmr), RSm, RSk, RS, CR, CF, CL, R, Ar, Rx, R3z

Power Supply Li-Ion Battery

Probe Positions In line

Probe Sensor Type Inductive

Probe Tip Radius 2 um

Profile (tp, (JIS, ASME) is Equivalent to Rmr), A1, A2, Ar, ASME, CF, CL, CR, JIS, JIS is Equivalent to Rz, Mr1, Mr2, R, R y, Ra, Rk, Rmax, Rmr, Rp, RpA, RPc, Rpk, Rpm, Rq, RS, RSk, RSm, Rt, Rvk, Rx, Rz, V o

Profile Resolution 8 nm

Sampling Length 0.049 in, 0.157 in, 4.921 in

Sampling Length (In.) 0.049 in, 0.157 in, 4.921 in

Sampling Range Arbitrary Length 0.060 mm, 0.190 mm, 0.590 mm

SPC Output Yes

Tester Series Marsurf Ps 10

Transverse Cutoff Length 0.25 mm, 0.8 mm, 2.5 mm
