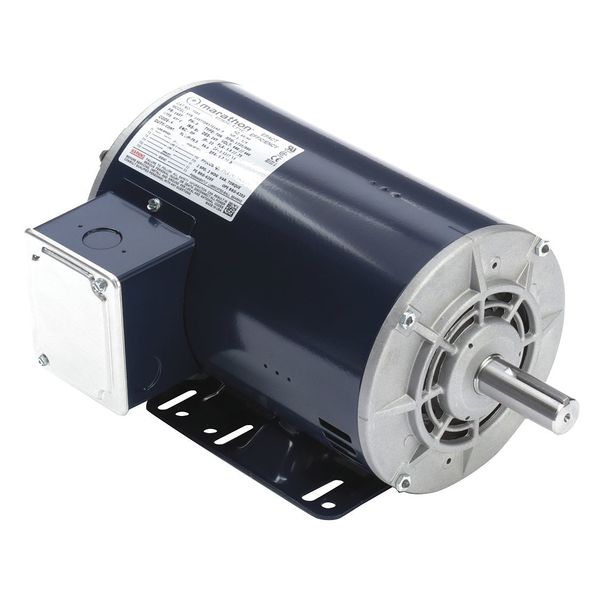

3-Phase Belt Drive Motor, 1, 1/4 HP, 145T Frame, 460V AC Voltage, 1,725/860 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description Belt Drive Motor, Three Phase, Motor Design 3-Phase, 1, 1/4 HP, Nameplate RPM 1,725/860, No. of Speeds 2, Voltage 460V AC, 1.50,/0.75 Full Load Amps, 145T Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
graingerSKU: 19RW32, mscSKU: , zoro_no: G5566967, mongo_id: 65bbe79c3aaddbd5a90a4bdf

Web Price

$1,177.49 / each

Product Details

Body Dia. 6 1/2 in

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Finish Blue Epoxy

Frame 145T

Frame Material Rolled steel

Full Load Amps 1.50,/0.75

Full Load Amps @ 50Hz 5.8-5.4/2.7

HP_ 1, 1/4

Hz_ 60

Ins. Class B

Length Less Shaft 10 11/16 in

Max. Ambient Temp. 104 Degrees F

Motor Application HVAC/R

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application Belt Drive Fan/Blower

Motor Thermal Protection None

Nameplate RPM 1,725/860

No. of Speeds 2

Nominal Efficiency 79.5 %

Overall Length 13 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 7/8 in

Shaft Length 2 1/4 in

Standards CSA (LR2025), UL (E49747)

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 42 lb
