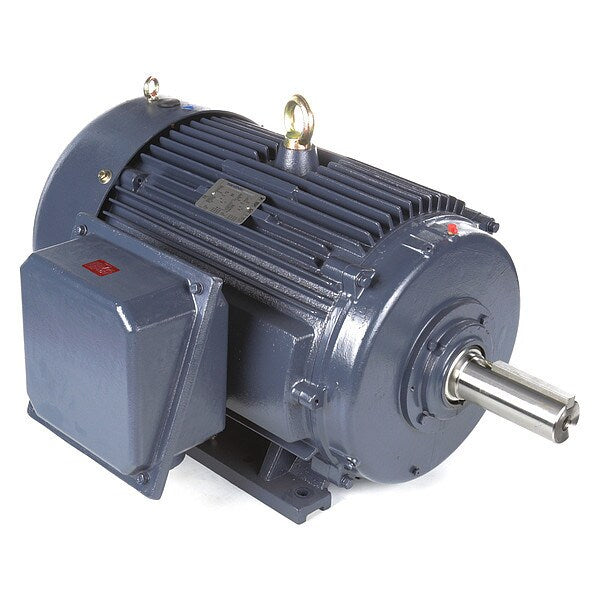

3-Phase Definite Purpose Motor, 100 HP, 405T Frame, 230/460V AC Voltage, 1,785 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description Definite Purpose Motor, Three Phase, Motor Design 3-Phase, 100 HP, Nameplate RPM 1,785, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 228.0/114.0, 405T Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: 53UF44, mscSKU: , zoro_no: G0357347, mongo_id: 65bbe84c22d7a989a98e9b09

Web Price

$20,361.24 / each

Qty

Product Details

CC Number CC003A

Conduit Box Location Exterior

Country of Origin (subject to change) China

Duty Continuous

Duty Cycle Continuous

Frame 405T

Full Load Amps 228.0/114.0

Green Certification or Other Recognition NEMA Premium(R) Rated

HP_ 100

Hz_ 60

Ins. Class F

Inverter Rated Yes

Length Less Shaft 35 1/2 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 40 Degrees C

Motor Application General Application

Motor Bearings Ball, Roller

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,785

No. of Speeds 1

Nominal Efficiency 95.4 %

Overall Length 42 3/4 in

Package Quantity 1

Phase Three

RPM Group 1701-1800

RPM Range 1,701-1,800

Shaft Dia. 2 7/8 in

Shaft Length 7 1/4 in

Standards CSA, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 1,462 lb
