Home / 3-Phase General Purpose Motor, 1 1/2 HP, 182TC Frame, 230/460V AC Voltage, 1,175 Nameplate RPM

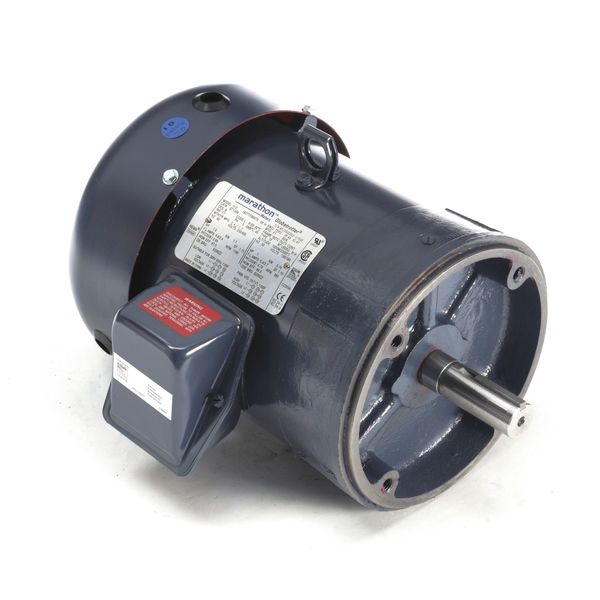

3-Phase General Purpose Motor, 1 1/2 HP, 182TC Frame, 230/460V AC Voltage, 1,175 Nameplate RPM

3-Phase General Purpose Motor, 1 1/2 HP, 182TC Frame, 230/460V AC Voltage, 1,175 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 1/2 hp HP, Nameplate RPM 1,175, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.6/2.3 A, 182TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design A, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal

    graingerSKU: 44P046, mscSKU: , zoro_no: G5812326, mongo_id: 65bbe82122d7a989a98db506

Web Price
$951.24 / each
Qty
Minimum order: 2

Product Details

No
CC003A
Mexico
Continuous
Continuous
182TC
Rolled steel
4.6/2.3 A
NEMA Premium(R) Rated
1 1/2 hp
60 Hz
F
Yes
13 1/8 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Steel
Horizontal
Face
1.15
Keyed
CW/CCW
None
1,175
A
1
87.5 %
15 7/8 in
1
Three
1101-1200
1,101-1,200
1 1/8 in
2 7/8 in
CE, CSA (LR2025), UL (E49747)
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
91 lb
