Home / 3-Phase General Purpose Motor, 10 HP, 213T Frame, 230/460V AC Voltage, 3,520 Nameplate RPM

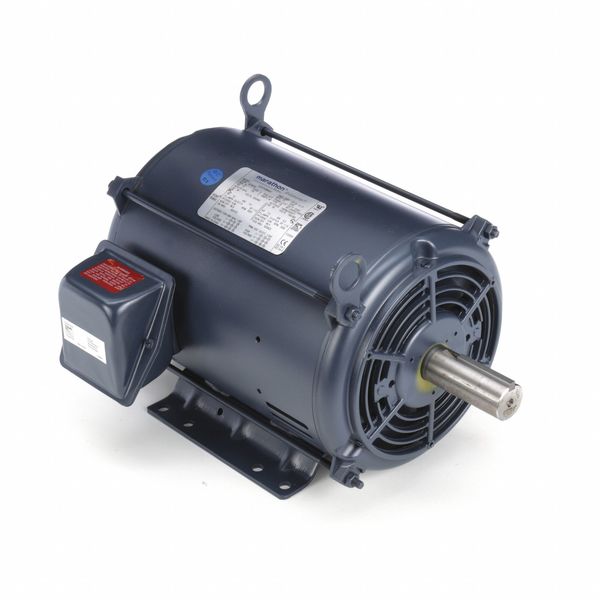

3-Phase General Purpose Motor, 10 HP, 213T Frame, 230/460V AC Voltage, 3,520 Nameplate RPM

3-Phase General Purpose Motor, 10 HP, 213T Frame, 230/460V AC Voltage, 3,520 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 10 hp HP, Nameplate RPM 3,520, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 24.2/12.1 A, 213T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: null, mscSKU: null, zoro_no: G5500835, mongo_id: 65bbe6f13aaddbd5a9064499

Web Price
$1,179.04 / each
Qty

Product Details

No
CC003A
Mexico
Continuous
Continuous
213T
Rolled steel
24.2/12.1 A
NEMA Premium(R) Rated
10 hp
60 Hz
Conduit Box
F
Yes
14 9/16 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
3,520
B
1
89.8 %
17 1/2 in
1
Three
3001-3600
3,001-3,600
1 3/8 in
2 15/16 in
CE, CSA (LR2025), UL (E49747)
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
125 lb
