Home / 3-Phase General Purpose Motor, 100 HP, 405TS Frame, 575V AC Voltage, 3,575 Nameplate RPM

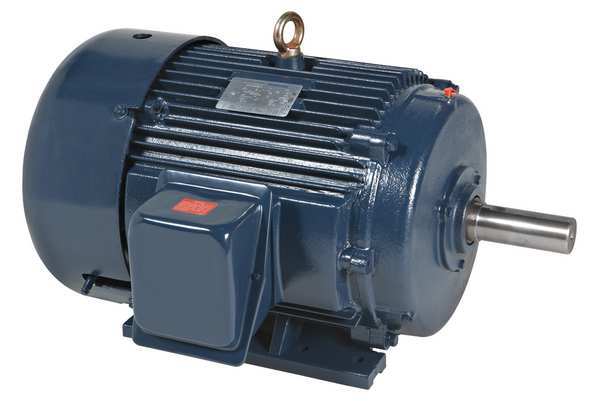

3-Phase General Purpose Motor, 100 HP, 405TS Frame, 575V AC Voltage, 3,575 Nameplate RPM

3-Phase General Purpose Motor, 100 HP, 405TS Frame, 575V AC Voltage, 3,575 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 100 hp HP, Nameplate RPM 3,575, No. of Speeds 1, Voltage 575V AC, Full Load Amps 89 A, 405TS Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Web Price
$12,891.11 / each
Qty

Product Details

No
CC003A
Mexico
Continuous
Continuous
405TS
Cast Iron
89 A
NEMA Premium(R) Rated
100 hp
60 Hz
Conduit Box
F
Yes
31 1/2 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
3,575
B
1
94.5 %
35 3/4 in
1
Three
3001-3600
3,001-3,600
2 1/8 in
4 1/4 in
CSA Certified, UL Listed
No
No
575V AC
575V AC
1,128 lb
