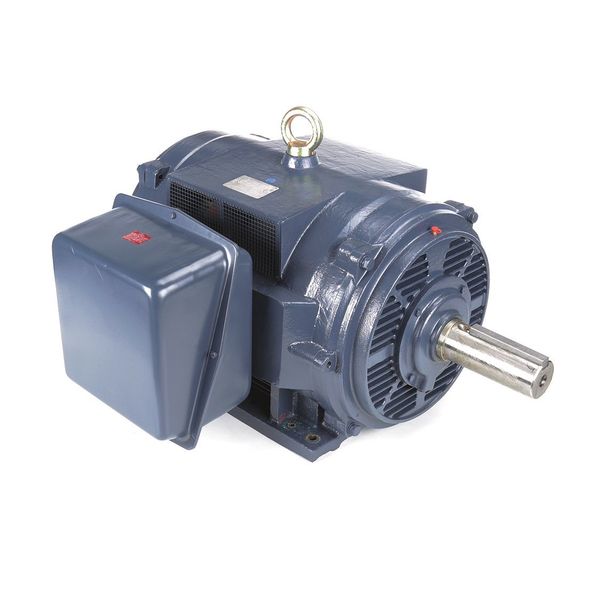

3-Phase General Purpose Motor, 100 HP, 444T Frame, 230/460V AC Voltage, 1,190 Nameplate RPM

3-Phase General Purpose Motor, 100 HP, 444T Frame, 230/460V AC Voltage, 1,190 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 100 hp HP, Nameplate RPM 1,190, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 232.0/116.0 A, 444T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Web Price
$14,090.85 / each
Qty

Product Details

No
CC003A
Mexico
Continuous
Continuous
444T
Cast Iron
232.0/116.0 A
NEMA Premium(R) Rated
100 hp
60 Hz
Conduit Box
F
Yes
36 1/16 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Cast Iron
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,190
B
1
95 %
44 9/16 in
1
Yes
Three
1101-1200
1,101-1,200
3 3/8 in
8 1/2 in
CSA Certified, UL Recognized
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
1,635 lb
