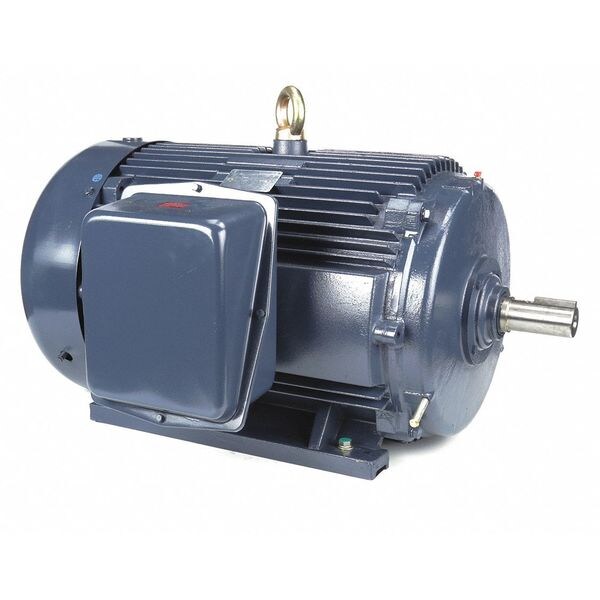

3-Phase General Purpose Motor, 150 HP, 445TS Frame, 460V AC Voltage, 3,580 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description General Purpose Motor, Three Phase, Motor Design 3-Phase, 150 hp HP, Nameplate RPM 3,580, No. of Speeds 1, Voltage 460V AC, Full Load Amps 164 A, 445TS Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: , mscSKU: , zoro_no: G9875476, mongo_id: 65bbe89c22d7a989a990640a

Web Price

$18,320.55 / each

Qty

Product Details

Capacitor Required No

CC Number CC003A

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 445TS

Frame Material Cast Iron

Full Load Amps 164 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP_ 150 hp

Hz_ 60/50 Hz

Includes Conduit Box

Ins. Class F

Inverter Rated Yes

Length Less Shaft 43 3/16 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 3,580

NEMA Design B

No. of Speeds 1

Nominal Efficiency 95 %

Overall Length 47 15/16 in

Package Quantity 1

Phase Three

RPM Group 3001-3600

RPM Range 3,001-3,600

Shaft Dia. 2 3/8 in

Shaft Length 4 3/4 in

Standards CSA Certified, UL Listed

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 1,829 lb
