Home / 3-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V AC Voltage, 3,500 Nameplate RPM

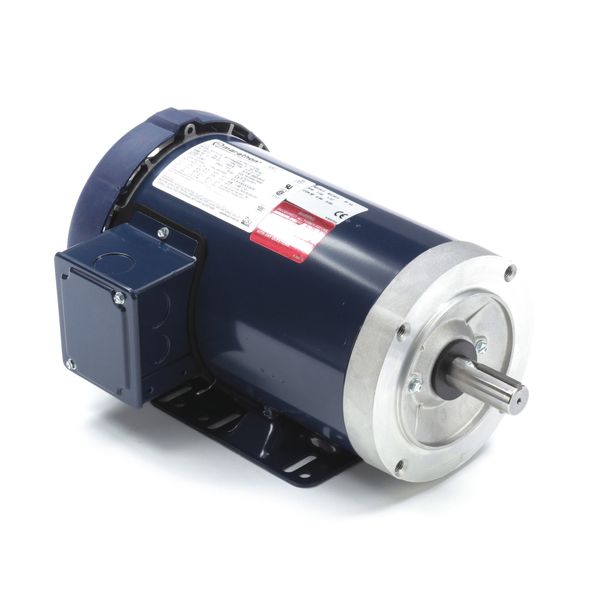

3-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V AC Voltage, 3,500 Nameplate RPM

3-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V AC Voltage, 3,500 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 2 hp HP, Nameplate RPM 3,500, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.0/2.5 A, 145TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: 44P036, mscSKU: , zoro_no: G5758961, mongo_id: 65bbe7a79a749db82274c45b

Web Price
$573.74 / each

Product Details

No
CC003A
Mexico
Continuous
Continuous
145TC
Rolled steel
5.0/2.5 A
5.0/2.5 A
NEMA Premium(R) Rated
2
2 hp
60/50 Hz
F
Yes
12 1/4 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
3,500
1
85.5 %
14 3/8 in
1
Three
3,500
3001-3600
3,001-3,600
1.15
7/8 in
2 1/8 in
CE, CSA, UL Recognized
No
No
230/460V AC
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
46 lb
