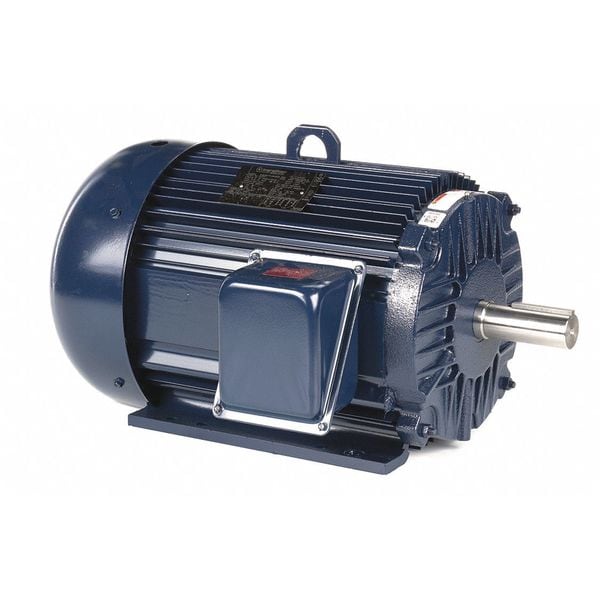

3-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1,775 Nameplate RPM

3-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1,775 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 20 hp HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 48.0/24.1 A, 256T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 44Z518, mscSKU: , zoro_no: G5297984, mongo_id: 65bbe95a22d7a989a994dec9

Web Price
$3,307.49 / each
Qty

Product Details

Shaft Slinger
No
CC003A
United States
Continuous
Continuous
256T
Aluminum
48.0/24.1 A
48.0/24.1 A
NEMA Premium(R) Rated
20
20
60/50 Hz
F
Yes
20 7/8 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Aluminum
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,775
B
1
94.1 %
25 1/4 in
1
Three
1,775
1701-1800
1,701-1,800
1.15
1 5/8 in
4 3/8 in
CE, CSA, UL Recognized
No
No
230/460V AC
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
309 lb
