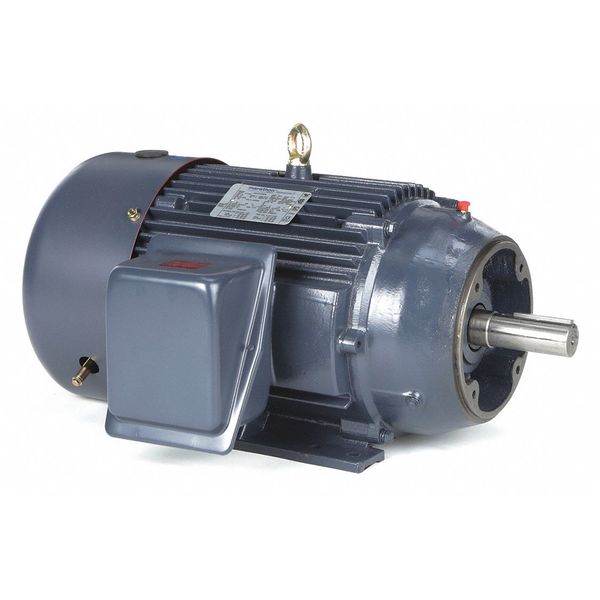

3-Phase General Purpose Motor, 20 HP, 256TC Frame, 230/460V AC Voltage, 1,768 Nameplate RPM

3-Phase General Purpose Motor, 20 HP, 256TC Frame, 230/460V AC Voltage, 1,768 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 20 hp HP, Nameplate RPM 1,768, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 48.5/24.2 A, 256TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Web Price
$2,878.74 / each
Qty

Product Details

No
CC003A
Mexico
Continuous
Continuous
256TC
Cast Iron
48.5/24.2 A
NEMA Premium(R) Rated
20 hp
60 Hz
F
Yes
22 3/8 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,768
B
1
94.1 %
26 3/8 in
1
Three
1701-1800
1,701-1,800
1 5/8 in
4 in
CE, CSA, UL Listed
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
330 lb
