Home / 3-Phase General Purpose Motor, 20 HP, 286T Frame, 230/460V AC Voltage, 1,182 Nameplate RPM

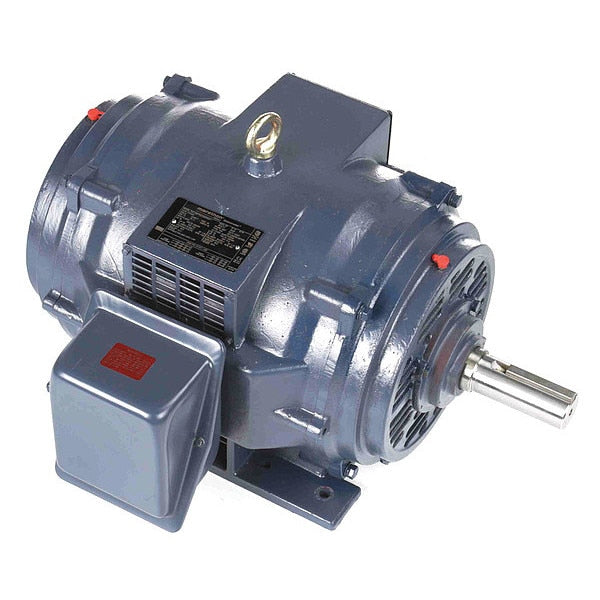

3-Phase General Purpose Motor, 20 HP, 286T Frame, 230/460V AC Voltage, 1,182 Nameplate RPM

3-Phase General Purpose Motor, 20 HP, 286T Frame, 230/460V AC Voltage, 1,182 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 20 hp HP, Nameplate RPM 1,182, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 52.5/26.3 A, 286T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Web Price
$3,327.49 / each
Qty

Product Details

CC003A
Mexico
Continuous
Continuous
286T
52.5/26.3 A
NEMA Premium(R) Rated
20
60 Hz
F
Yes
22 5/16 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
Open Dripproof
Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,182
B
1
92.5 %
27 1/16 in
1
Three
1101-1200
1,101-1,200
1 7/8 in
4 13/16 in
CE, CSA, UL Recognized
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
420 lb
