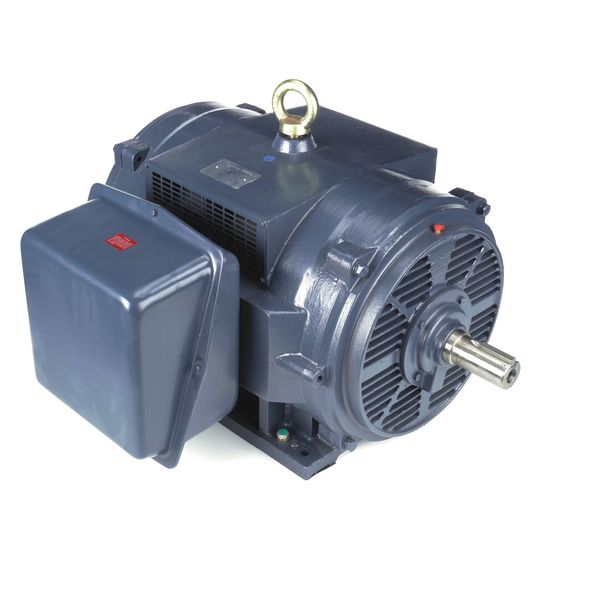

3-Phase General Purpose Motor, 200 HP, 444TS Frame, 460V AC Voltage, 3,582 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description General Purpose Motor, Three Phase, Motor Design 3-Phase, 200 hp HP, Nameplate RPM 3,582, No. of Speeds 1, Voltage 460V AC, Full Load Amps 215.0 A, 444TS Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: , mscSKU: , zoro_no: G9877506, mongo_id: 65bbe6023aaddbd5a900013f

Web Price

$17,119.09 / each

Qty

Product Details

Capacitor Required No

CC Number CC003A

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 444TS

Frame Material Cast Iron

Full Load Amps 215.0 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP_ 200 hp

Hz_ 60 Hz

Includes Conduit Box

Ins. Class F

Inverter Rated Yes

Length Less Shaft 36 1/16 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Open Dripproof

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 3,582

NEMA Design B

No. of Speeds 1

Nominal Efficiency 95 %

Overall Length 40 13/16 in

Package Quantity 1

Part Winding Start Capable Yes

Phase Three

RPM Group 3001-3600

RPM Range 3,001-3,600

Shaft Dia. 2 3/8 in

Shaft Length 4 3/4 in

Standards CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 1,946 lb
