Home / 3-Phase General Purpose Motor, 3 HP, 145T Frame, 230/460V AC Voltage, 3,500 Nameplate RPM

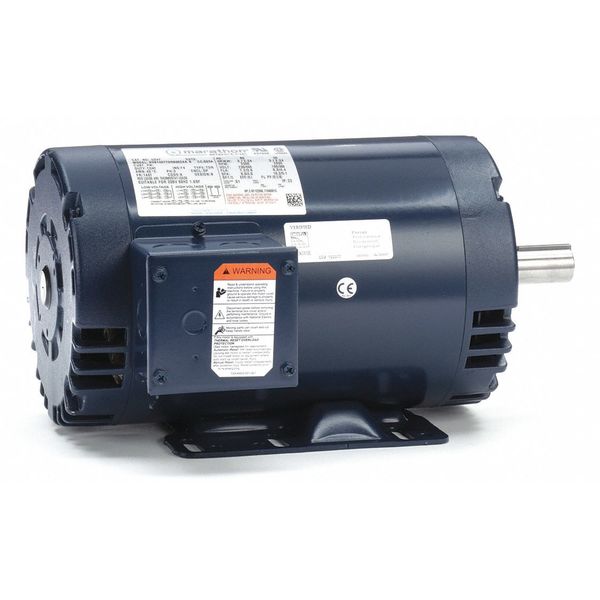

3-Phase General Purpose Motor, 3 HP, 145T Frame, 230/460V AC Voltage, 3,500 Nameplate RPM

3-Phase General Purpose Motor, 3 HP, 145T Frame, 230/460V AC Voltage, 3,500 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 hp HP, Nameplate RPM 3,500, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 7.2/3.6 A, 145T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection T-Stat, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes

    graingerSKU: 44Z152, mscSKU: , zoro_no: G7531212, mongo_id: 65bbe7d03aaddbd5a90ba54e

Web Price
$841.24 / each

Product Details

No
CC003A
United States
Continuous
Continuous
145T
Rolled steel
7.2/3.6 A
7.2/3.6 A
NEMA Premium(R) Rated
3
3 hp
60/50 Hz
F
Yes
10 5/16 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
T-Stat
3,500
1
86.5 %
12 11/16 in
1
Three
3,500
3001-3600
3,001-3,600
1.15
7/8 in
2 3/8 in
CE, CSA, UL Recognized
No
No
230/460V AC
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
46 lb
