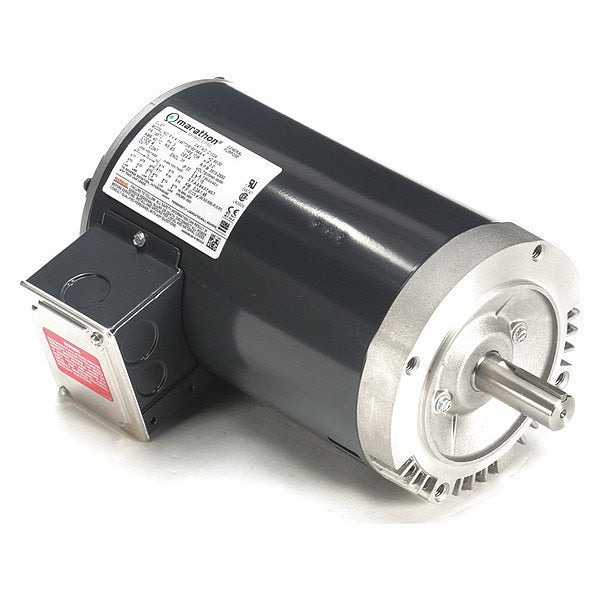

3-Phase General Purpose Motor, 3 HP, 145TC Frame, 230/460V AC Voltage, 3,510 Nameplate RPM

3-Phase General Purpose Motor, 3 HP, 145TC Frame, 230/460V AC Voltage, 3,510 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 hp HP, Nameplate RPM 3,510, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 7.6/3.8 A, 145TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal, Inverter Rated No

    graingerSKU: 52XR47, mscSKU: , zoro_no: G7418769, mongo_id: 65bbe7d03aaddbd5a90ba553

Web Price
$754.99 / each

Product Details

CC003A
Mexico
Continuous
Continuous
145TC
Rolled steel
7.6/3.8 A
7.6/3.8 A
NEMA Premium(R) Rated
3
3 hp
60/50 Hz
B
No
10 7/8 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
Horizontal
Face
1.15
Keyed
CW/CCW
None
3,510
1
87.5 %
13 in
1
Three
3,510
3001-3600
3,001-3,600
1.15
7/8 in
2 1/8 in
CE, CSA, UL Recognized
No
No
230/460V AC
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
58 lb
