Home / 3-Phase General Purpose Motor, 3 HP, 182T Frame, 200V AC Voltage, 1,760 Nameplate RPM

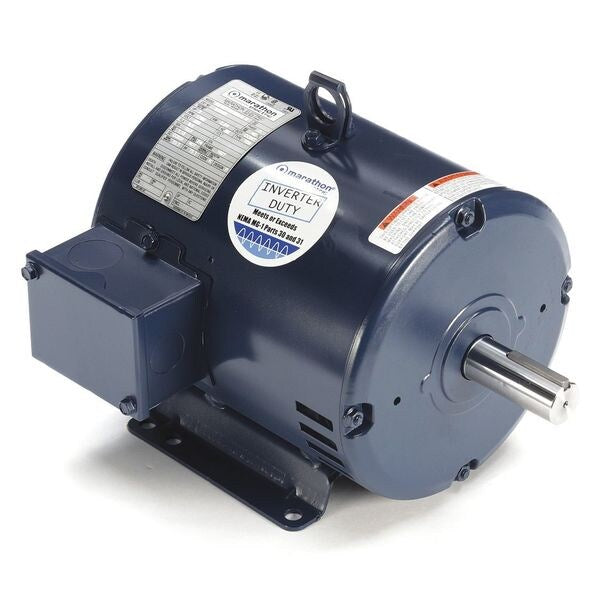

3-Phase General Purpose Motor, 3 HP, 182T Frame, 200V AC Voltage, 1,760 Nameplate RPM

3-Phase General Purpose Motor, 3 HP, 182T Frame, 200V AC Voltage, 1,760 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 hp HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 200V AC, Full Load Amps 9.5 A, 182T Frame, Usable @ 208V No, Usable @ 200V Yes, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Air-Over, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated No

    graingerSKU: 52ZW06, mscSKU: , zoro_no: G7435298, mongo_id: 65bbe6683aaddbd5a902af96

Web Price
$712.49 / each

Product Details

CC003A
Mexico
Continuous
Continuous
182T
Rolled steel
9.5 A
NEMA Premium(R) Rated
3 hp
60 Hz
F
No
10 3/8 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Air-Over
Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,760
1
89.5 %
13 3/16 in
1
Three
1701-1800
1,701-1,800
1 1/8 in
2 13/16 in
CSA (LR2025), UL (E49747)
Yes
No
200V AC
115/200-230V AC, 200-208V AC, 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
