Home / 3-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1,765 Nameplate RPM

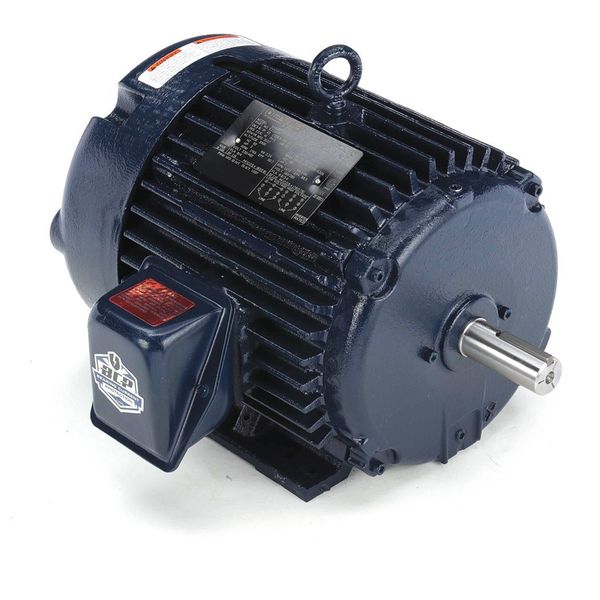

3-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1,765 Nameplate RPM

3-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1,765 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 hp HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.0/4.0 A, 182T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 40Z951, mscSKU: , zoro_no: G9072226, mongo_id: 65bbe5bc3aaddbd5a9fe3157

Web Price
$954.99 / each
Qty

Product Details

Shaft Slinger
CC003A
Mexico
Continuous
Continuous
182T
Cast Iron
8.0/4.0 A
8/4 A
NEMA Premium(R) Rated
3
3 hp
60/50 Hz
AEGIS SGR Bearing Protection Rings
F
Yes
13 1/8 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,765
B
1
82.5 %
15 7/8 in
1
Three
1,765
1701-1800
1,701-1,800
1.15
1 1/8 in
2 3/4 in
CSA, UL
No
No
230/460V AC
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
