Home / 3-Phase General Purpose Motor, 3 HP, 90S Frame, 575V AC Voltage, 3,500 Nameplate RPM

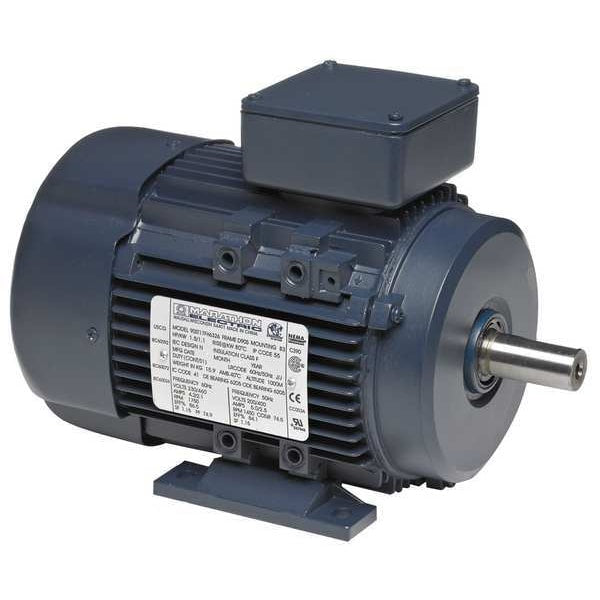

3-Phase General Purpose Motor, 3 HP, 90S Frame, 575V AC Voltage, 3,500 Nameplate RPM

3-Phase General Purpose Motor, 3 HP, 90S Frame, 575V AC Voltage, 3,500 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 hp HP, Nameplate RPM 3,500, No. of Speeds 1, Voltage 575V AC, Full Load Amps 3 A, 90S Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes

    graingerSKU: 24ME91, mscSKU: , zoro_no: G5557885, mongo_id: 65bbe6ad3aaddbd5a90479a4

Web Price
$547.49 / each
Qty

Product Details

CC003A
China
Continuous
Continuous
90S
Aluminum
3 A
NEMA Premium(R) Rated
3 hp
60 Hz
F
Yes
2.24
291 mm
104 Degrees F
General Application
Ball
3-Phase
Totally Enclosed Fan-Cooled
Aluminum
Horizontal
Rigid Base
1.15
CW/CCW
None
3,500
1
87.5 %
341 mm
1
Three
3,001-3,600
24 mm
50 mm
CE, CSA, UL Recognized
No
No
575V AC
575V AC
48 lb
