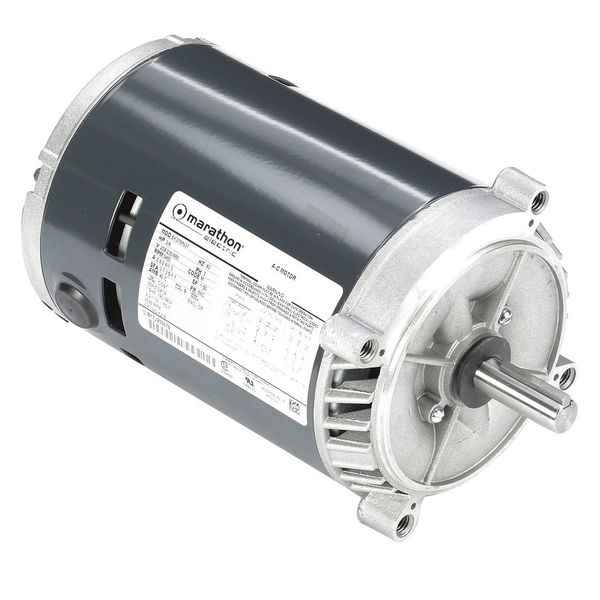

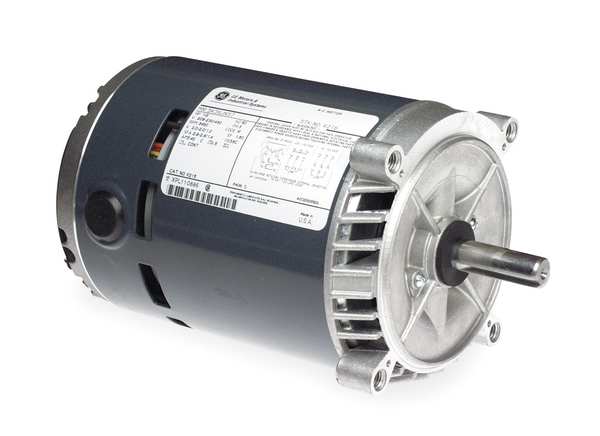

3-Phase General Purpose Motor, 3/4 HP, 56C Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM
3-Phase General Purpose Motor, 3/4 HP, 56C Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM

3-Phase General Purpose Motor, 3/4 HP, 56C Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 3/4 hp HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.6/1.3 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.5, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position All Angle

    graingerSKU: 3N819, mscSKU: , zoro_no: G0375873, mongo_id: 65bbe9ec22d7a989a9987763

Web Price
$368.74 / each
Qty

Product Details

Mexico
Continuous
Continuous
56C
Rolled steel
2.6/1.3 A
3/4
60 Hz
B
8 13/16 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
Open Dripproof
Steel
All Angle
Face
1.5
Keyed
CW/CCW
None
3,450
B
1
74 %
10 11/16 in
1
Three
3001-3600
3,001-3,600
5/8 in
1 7/8 in
CSA Certified, UL Listed
No
Yes
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
17 lb
