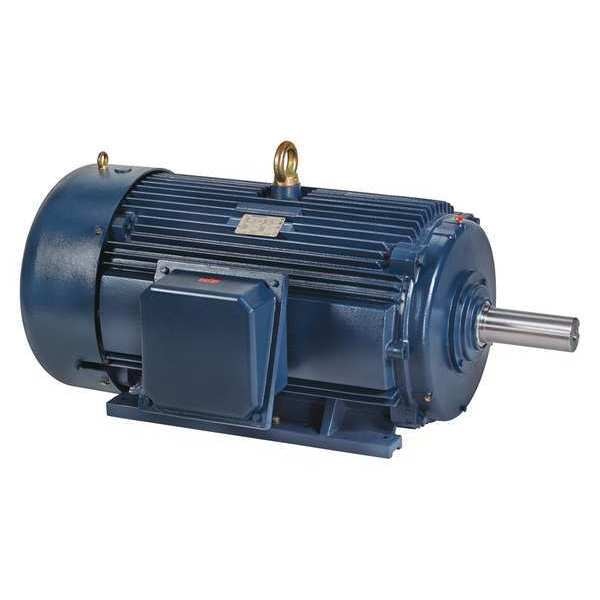

3-Phase General Purpose Motor, 350 HP, 447TS Frame, 460V AC Voltage, 1,785 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description General Purpose Motor, Three Phase, Motor Design 3-Phase, 350 hp HP, Nameplate RPM 1,785, No. of Speeds 1, Voltage 460V AC, Full Load Amps 395 A, 447TS Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated No
graingerSKU: 53UF19, mscSKU: , zoro_no: G0355807, mongo_id: 65bbe8219a749db82277748e

Web Price

$29,353.65 / each

Qty

Product Details

CC Number CC003A

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 447TS

Full Load Amps 395 A

Full Load Amps @ 50Hz 395.0 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP @ 50Hz 350

HP_ 350 hp

Hz_ 60/50 Hz

Ins. Class F

Inverter Rated No

Length Less Shaft 34 3/4 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,785

No. of Speeds 1

Nominal Efficiency 87.5 %

Overall Length 39 1/2 in

Package Quantity 1

Phase Three

RPM @ 50Hz 1,785

RPM Group 1701-1800

RPM Range 1,701-1,800

Service Factor @ 50Hz 1.15

Shaft Dia. 2 3/8 in

Shaft Length 4 3/4 in

Standards CSA (LR2025), UL (E49747)

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage @ 50Hz 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 2,230 lb
