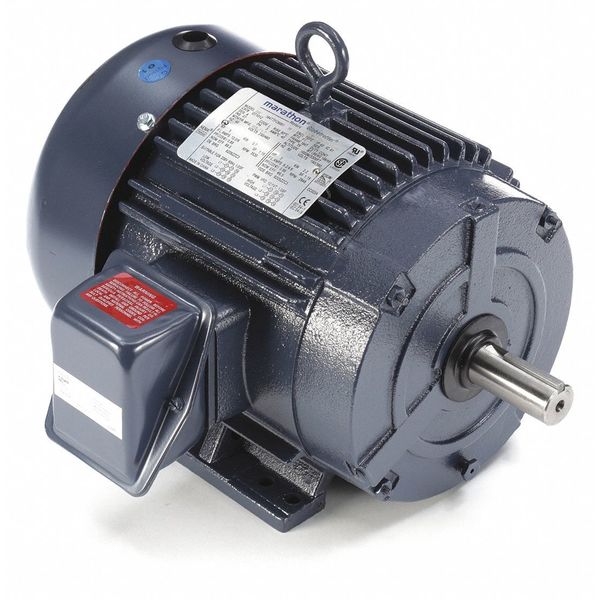

3-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3,525 Nameplate RPM

3-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3,525 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 5 hp HP, Nameplate RPM 3,525, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.4/6.2 A, 184T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design A, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 44Z316, mscSKU: , zoro_no: G5614831, mongo_id: 65bbe5993aaddbd5a9fd4cab

Web Price
$1,013.74 / each
Qty
Minimum order: 2

Product Details

Shaft Slinger
No
CC003A
Mexico
Continuous
Continuous
184T
Cast Iron
12.4/6.2 A
NEMA Premium(R) Rated
5 hp
60 Hz
Conduit Box
F
Yes
13 5/16 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
3,525
A
1
88.5 %
16 1/16 in
1
Three
3001-3600
3,001-3,600
1 1/8 in
2 3/4 in
CSA, UL
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
94 lb
