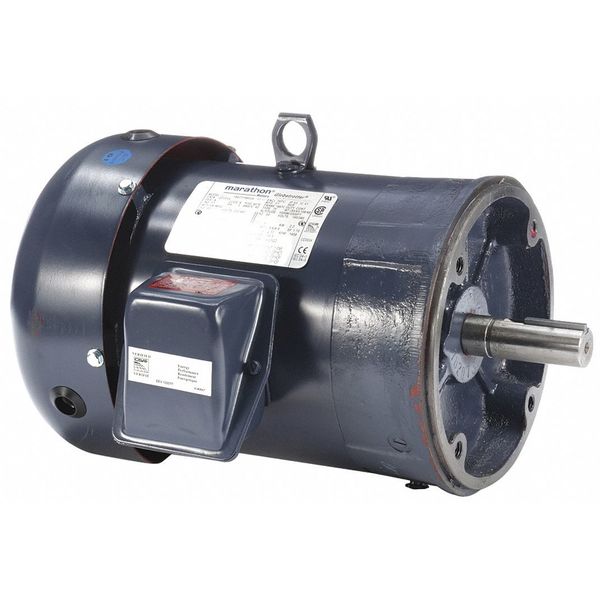

3-Phase General Purpose Motor, 5 HP, 184TC Frame, 230/460V AC Voltage, 1,765 Nameplate RPM

3-Phase General Purpose Motor, 5 HP, 184TC Frame, 230/460V AC Voltage, 1,765 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 5 hp HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 13.2/6.6 A, 184TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design A, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal

    graingerSKU: , mscSKU: , zoro_no: G5602633, mongo_id: 65bbe6cf3aaddbd5a9055fb8

Web Price
$937.49 / each
Qty

Product Details

No
CC003A
Mexico
Continuous
Continuous
184TC
Rolled steel
13.2/6.6 A
NEMA Premium(R) Rated
5 hp
60 Hz
F
Yes
14 1/8 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Steel
Horizontal
Face
1.15
Keyed
CW/CCW
None
1,765
A
1
89.5 %
16 7/8 in
1
Three
1701-1800
1,701-1,800
1 1/8 in
2 7/8 in
CSA, UL
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
105 lb
