Home / 3-Phase General Purpose Motor, 50 HP, 326TC Frame, 230/460V AC Voltage, 1,780 Nameplate RPM

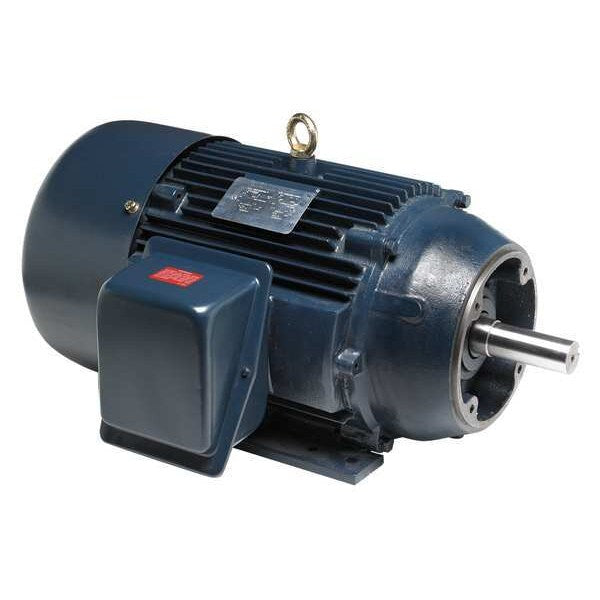

3-Phase General Purpose Motor, 50 HP, 326TC Frame, 230/460V AC Voltage, 1,780 Nameplate RPM

3-Phase General Purpose Motor, 50 HP, 326TC Frame, 230/460V AC Voltage, 1,780 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 50 hp HP, Nameplate RPM 1,780, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 117.0/58.5 A, 326TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: , mscSKU: , zoro_no: G9877384, mongo_id: 65bbe68b3aaddbd5a90394a5

Web Price
$5,833.30 / each
Qty

Product Details

No
CC003A
Mexico
Continuous
Continuous
326TC
Cast Iron
117.0/58.5 A
NEMA Premium(R) Rated
50 hp
60 Hz
Conduit Box
F
Yes
25 15/16 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,780
B
1
94.5 %
31 3/16 in
1
Three
1701-1800
1,701-1,800
2 1/8 in
5 1/4 in
CSA Certified, UL Recognized
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
702 lb
