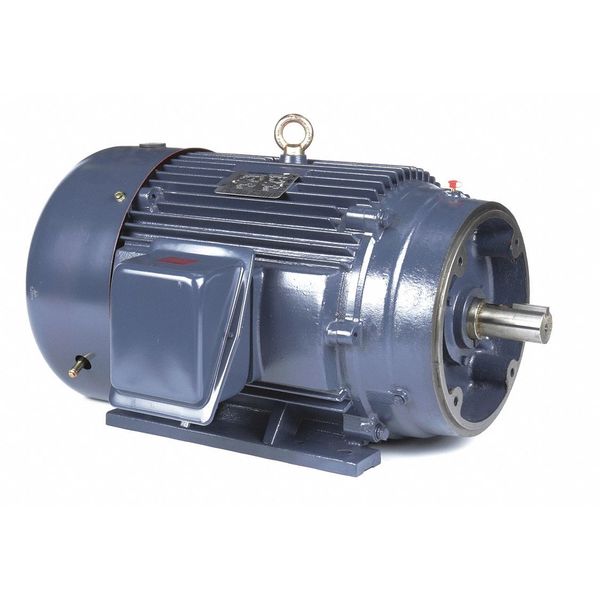

3-Phase General Purpose Motor, 50 HP, 326TS Frame, 230/460V AC Voltage, 3,568 Nameplate RPM

3-Phase General Purpose Motor, 50 HP, 326TS Frame, 230/460V AC Voltage, 3,568 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 50 hp HP, Nameplate RPM 3,568, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 113.0/56.5 A, 326TS Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: , mscSKU: , zoro_no: G9877393, mongo_id: 65bbe5bc3aaddbd5a9fe3156

Web Price
$5,818.32 / each
Qty

Product Details

No
CC003A
Mexico
Continuous
Continuous
326TS
Cast Iron
113.0/56.5 A
NEMA Premium(R) Rated
50 hp
60 Hz
F
No
25 15/16 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
3,568
B
1
95.8 %
29 11/16 in
1
Three
3001-3600
3,001-3,600
1 7/8 in
3 3/4 in
CE, CSA, UL Listed
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
595 lb
