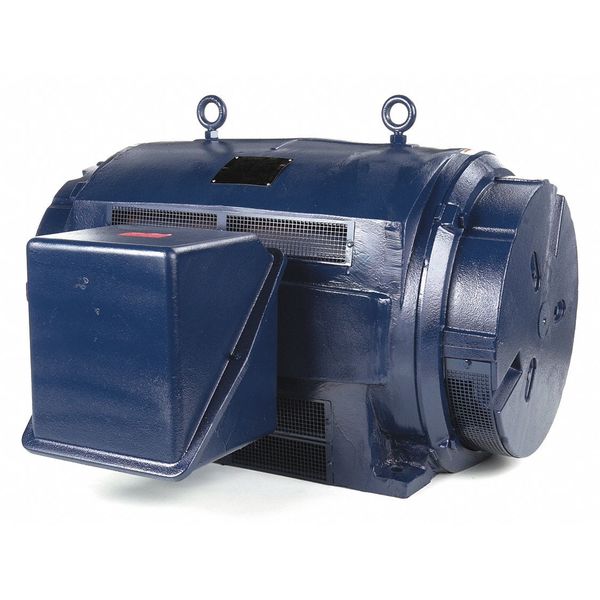

3-Phase General Purpose Motor, 500 HP, 449TS Frame, 460V AC Voltage, 3,572 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description General Purpose Motor, Three Phase, Motor Design 3-Phase, 500 hp HP, Nameplate RPM 3,572, No. of Speeds 1, Voltage 460V AC, Full Load Amps 538 A, 449TS Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class H, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: 44Z255, mscSKU: , zoro_no: G9875862, mongo_id: 65bbe7519a749db82272f9f8

Web Price

$37,611.24 / each

Product Details

Capacitor Required No

CC Number CC003A

Country of Origin (subject to change) United States

Duty Continuous

Duty Cycle Continuous

Frame 449TS

Frame Material Cast Iron

Full Load Amps 538 A

Full Load Amps @ 50Hz 538.0 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP @ 50Hz 500

HP_ 500 hp

Hz_ 60/50 Hz

Ins. Class H

Inverter Rated Yes

Length Less Shaft 39 1/2 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Open Dripproof

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 3,572

NEMA Design B

No. of Speeds 1

Nominal Efficiency 96.2 %

Overall Length 44 1/2 in

Package Quantity 1

Phase Three

RPM @ 50Hz 3,572

RPM Group 3001-3600

RPM Range 3,001-3,600

Service Factor @ 50Hz 1.15

Shaft Dia. 2 3/8 in

Shaft Length 5 in

Standards CE Certified, CSA Certified, UL Listed

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage @ 50Hz 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 2,649 lb
