Home / 3-Phase General Purpose Motor, 75 HP, 365TC Frame, 230/460V AC Voltage, 1,782 Nameplate RPM

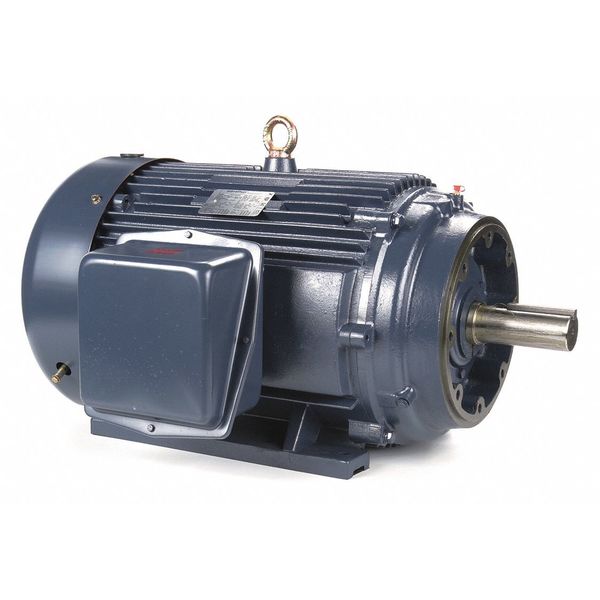

3-Phase General Purpose Motor, 75 HP, 365TC Frame, 230/460V AC Voltage, 1,782 Nameplate RPM

3-Phase General Purpose Motor, 75 HP, 365TC Frame, 230/460V AC Voltage, 1,782 Nameplate RPM

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 75 hp HP, Nameplate RPM 1,782, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 171.0/85.5 A, 365TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Web Price
$9,941.36 / each
Qty

Product Details

No
CC003A
Mexico
Continuous
Continuous
365TC
Cast Iron
171.0/85.5 A
NEMA Premium(R) Rated
75 hp
60 Hz
Conduit Box
F
Yes
28 7/16 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,782
B
1
95.4 %
34 5/16 in
1
Three
1701-1800
1,701-1,800
2 3/8 in
5 7/8 in
CSA Certified, UL Listed
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
1,130 lb
