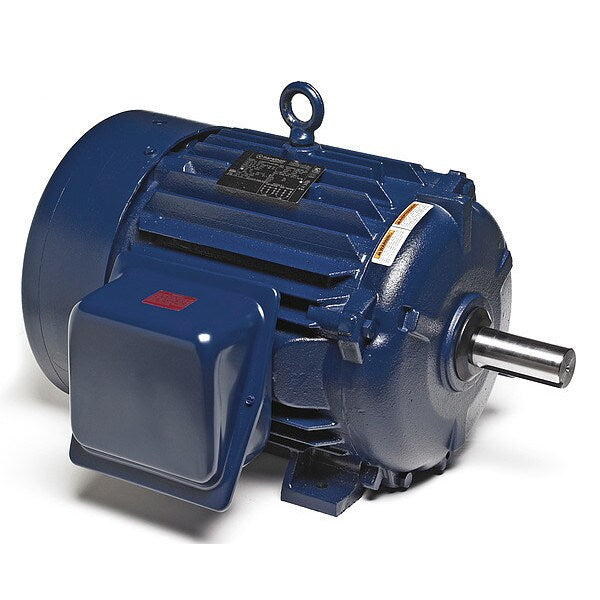

3-Phase Severe Duty Motor, 10 HP, 460V AC Voltage, 215T Frame, 3,518 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description Severe Duty Motor, Three Phase, Motor Design 3-Phase, 10 HP, Nameplate RPM 3,518, No. of Speeds 1, Voltage 460V AC, Full Load Amps 11.8 A, 215T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Ins. Class H, Hazardous Location Class 1 A,B,C,D, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
graingerSKU: 491J89, mscSKU: , zoro_no: G1195973, mongo_id: 65bbe6683aaddbd5a902b0d1

Web Price

$1,942.49 / each

Qty

Product Details

CC Number CC003A

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 215T

Full Load Amps 11.8 A

Green Certification or Other Recognition NEMA Premium(R) Rated

Hazardous Location Class 1 A,B,C,D

Hazardous Location Division Division 2

HP_ 10

Hz_ 60 Hz

Includes Max Guard Insulation, Shaft Key

Ins. Class H

Inverter Rated Yes

Length Less Shaft 16 5/8 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 3,518

NEMA Design B

No. of Speeds 1

Nominal Efficiency 90.2 %

Overall Length 20 1/16 in

Package Quantity 1

Phase Three

RPM Group 3001-3600

RPM Range 3,001-3,600

Shaft Dia. 1 3/8 in

Shaft Length 3 3/8 in

Standards CE, CSA, UL Listed

Temp. Code T2B

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 227 lb
