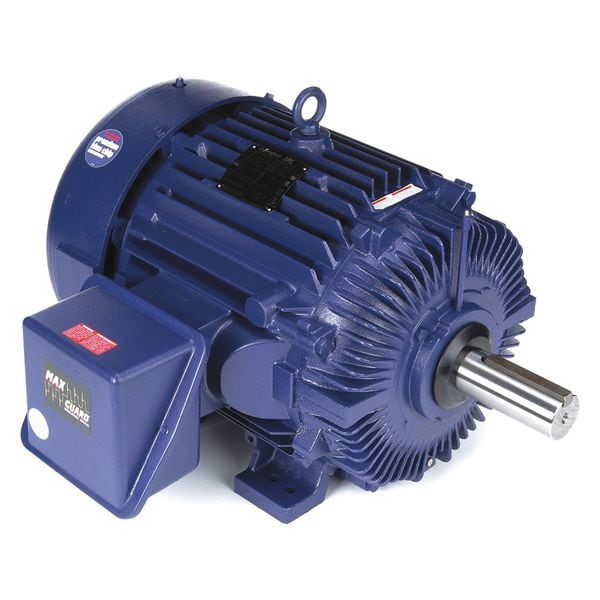

3-Phase Severe Duty Motor, 100 HP, 405T Frame, 460V AC Voltage, 1,785 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description Severe Duty Motor, Three Phase, Motor Design 3-Phase, 100 HP, Nameplate RPM 1,785, No. of Speeds 1, Voltage 460V AC, Full Load Amps 113 A, 405T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Ins. Class H, Hazardous Location Class 1 A,B,C,D, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
graingerSKU: 19RY19, mscSKU: , zoro_no: G2245251, mongo_id: 65bbe8c222d7a989a99149dd

Web Price

$15,223.74 / each

Qty

Product Details

CC Number CC003A

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 405T

Frame Material Cast Iron

Full Load Amps 113 A

Green Certification or Other Recognition NEMA Premium(R) Rated

Hazardous Location Class 1 A,B,C,D

Hazardous Location Division Division 2

HP_ 100

Hz_ 60 Hz

Includes Max Guard Insulation, Shaft Key

Ins. Class H

Inverter Rated Yes

Lead Length 3 in

Length Less Shaft 31 5/8 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,785

NEMA Design B

No. of Speeds 1

Nominal Efficiency 95.4 %

Overall Length 38 7/8 in

Package Quantity 1

Phase Three

RPM Group 1701-1800

RPM Range 1,701-1,800

Shaft Dia. 2 7/8 in

Shaft Length 7 1/2 in

Standards CE, CSA, UL Listed

Temp. Code T2B

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 1,325 lb
