Home / 3-Phase Severe Duty Motor, 15 HP, 254T Frame, 230/460V AC Voltage, 1,772 Nameplate RPM

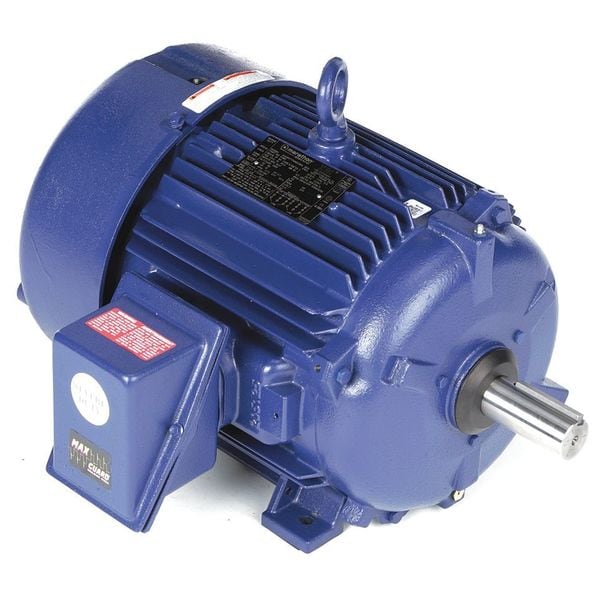

3-Phase Severe Duty Motor, 15 HP, 254T Frame, 230/460V AC Voltage, 1,772 Nameplate RPM

3-Phase Severe Duty Motor, 15 HP, 254T Frame, 230/460V AC Voltage, 1,772 Nameplate RPM

  • Marathon Motors
  • Severe Duty Motor, Three Phase, Motor Design 3-Phase, 15 hp HP, Nameplate RPM 1,772, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 37.5/18.8 A, 254T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class H, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: 19RX63, mscSKU: , zoro_no: G9943832, mongo_id: 65bbe95a22d7a989a994ded1

Web Price
$2,626.24 / each

Product Details

CC003A
Mexico
Continuous
Continuous
254T
Cast Iron
37.5/18.8 A
NEMA Premium(R) Rated
1 C,D / 2 F,G
15
60 Hz
Max Guard Insulation
H
Yes
9 to 8
20 1/8 in
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,772
B
1
93.6 %
24 1/8 in
1
Three
1701-1800
1,701-1,800
1 5/8 in
4 in
CE, CSA, UL Listed
T2B
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
345 lb
