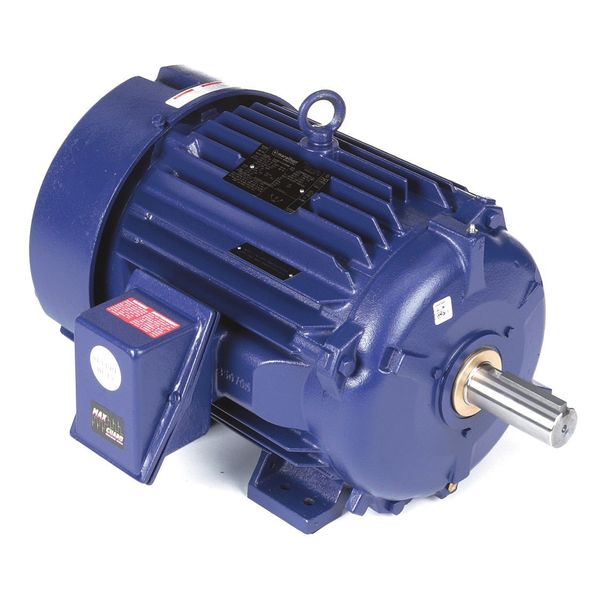

3-Phase Severe Duty Motor, 15 HP, 286T Frame, 460V AC Voltage, 875 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description Severe Duty Motor, Three Phase, Motor Design 3-Phase, 15 hp HP, Nameplate RPM 875, No. of Speeds 1, Voltage 460V AC, Full Load Amps 22 A, 286T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: 19RV44, mscSKU: , zoro_no: G1994988, mongo_id: 65bbe7d03aaddbd5a90ba552

Web Price

$7,007.49 / each

Qty

Product Details

CC Number CC003A

Country of Origin (subject to change) United States

Duty Continuous

Duty Cycle Continuous

Frame 286T

Frame Material Cast Iron

Full Load Amps 22 A

Green Certification or Other Recognition NEMA Premium(R) Rated

Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D

HP_ 15 hp

Hz_ 60 Hz

Includes Breather/Drain

Ins. Class F

Inverter Rated Yes

Lead Length 3 to 8

Length Less Shaft 22 7/8 in

Max. Ambient Temp. 104 Degrees F

Motor Application IEEE Motor

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 875

NEMA Design B

No. of Speeds 1

Nominal Efficiency 94.1 %

Overall Length 27 11/16 in

Package Quantity 1

Phase Three

RPM Group Under 1000

RPM Range 0-1,100

Shaft Dia. 1 7/8 in

Shaft Length 4 13/16 in

Standards CE, CSA, UL Recognized

Temp. Code T2B

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 326 lb
